Removal (page 2 of 3)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Complete front side panel

BodyworkRemoval · page 2 of 3

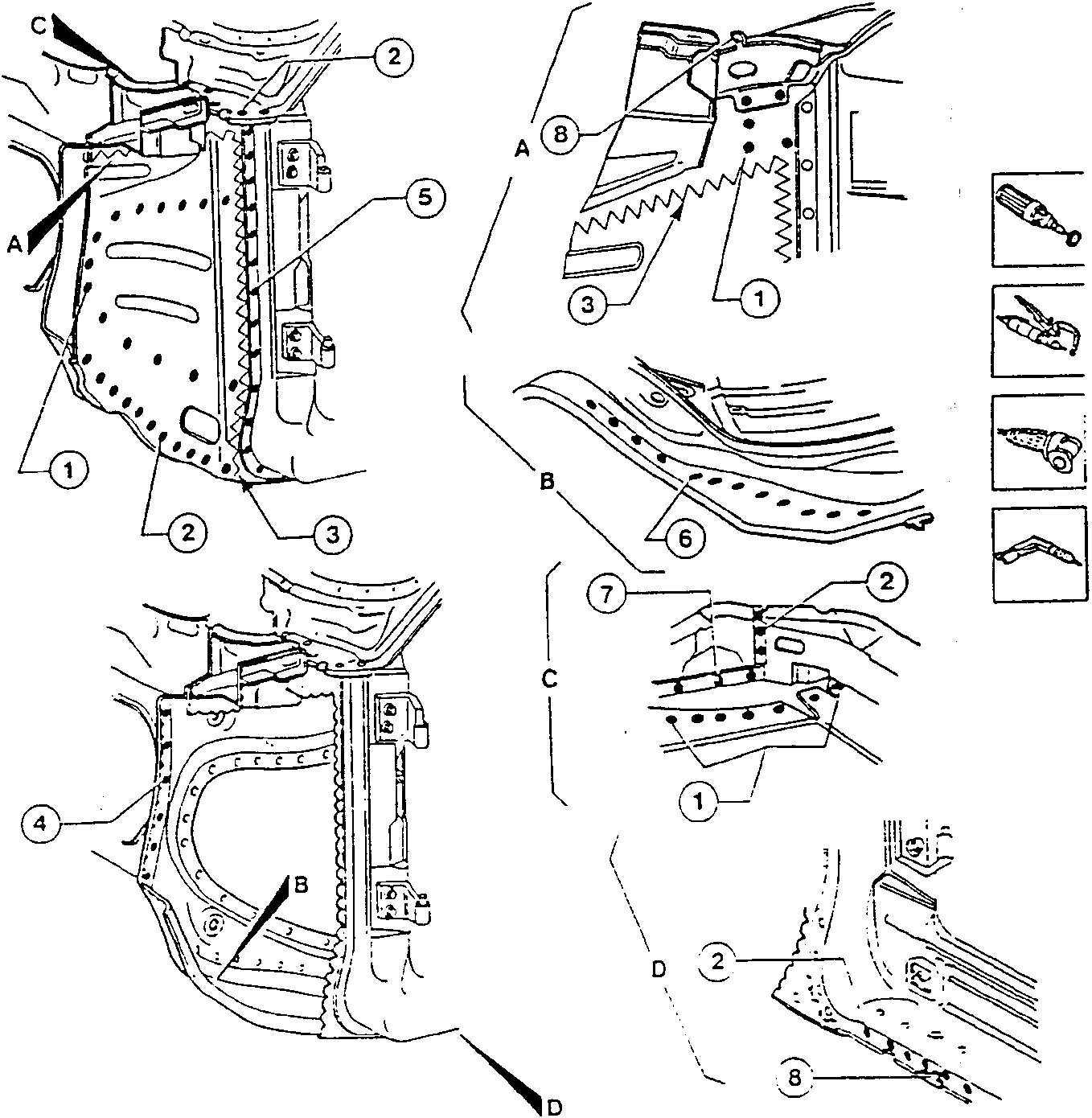

1. Remove the indicated welds with a drill.
2. Remove the indicated welds with a chamfering machine.
3. Using a circular saw, cut along the lines indicated in the illustration and remove the sheet metal.
4. Using a chamfering machine remove the welds indicated.
5. Using a drill, remove the indicated welds from inside
6. Remove the indicated welds from below using a chamfering machine.
7. Using a pneumatic hammer, remove the welds indicated.
8. Open the clinch tabs.

1. Part 1
2. Part 2
3. Part 3
4. Part 4
5. Part 5
6. Part 6
7. Part 7
8. Part 8

60 Body & interior
