Removal (page 2 of 2)

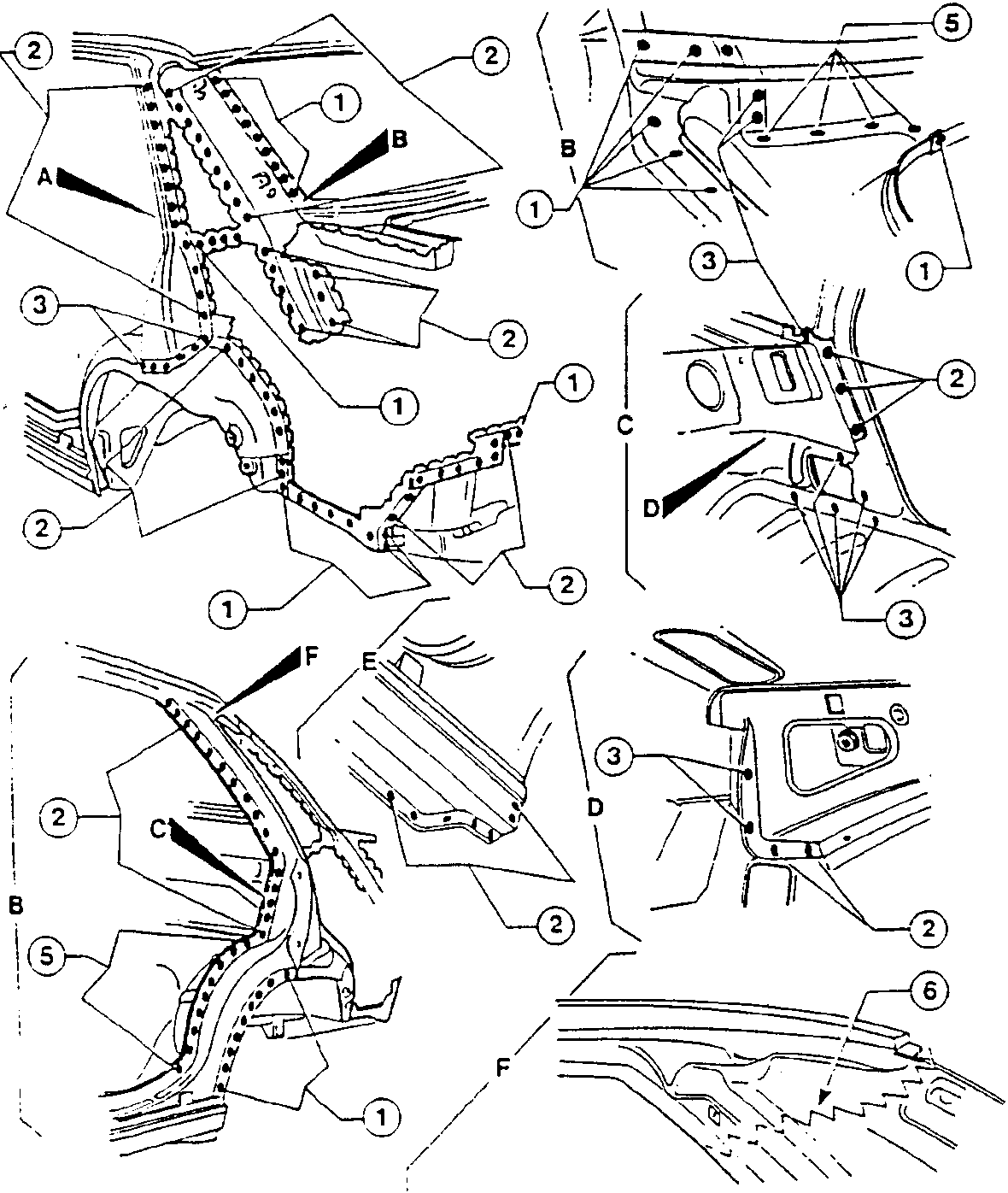

Using a rotating brush, clean the areas to be chamfered in order to show up the welds.

1. Remove the welds with a chamfering machine.
2. Remove the welds from the inside of the vehicle using a chamfering machine.
3. Remove the welds with a drill.
4. Remove the welds shown by drilling clearance holes.
5. Using a jig saw cut along the lines indicated in the illustration without damaging the rear pillar.

Withdraw the piece of sheet metal between the rear pillar and the inner frame.
