Removal

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Complete rails with floor removed › Removal

BodyworkRemoval

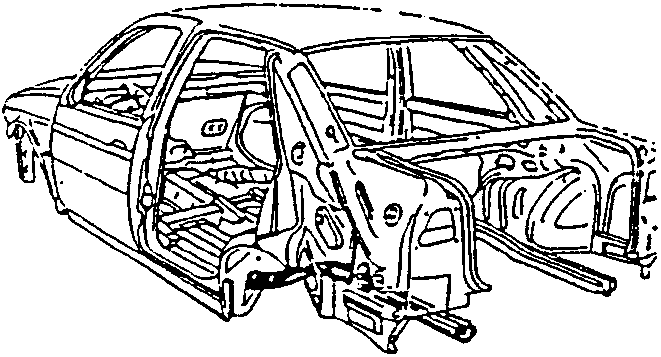

In order to facilitate the successive operations, the following components should be removed temporarily:

• rear bumper and external trim (see: GR. 75);
• luggage compartment trim (see: GR. 66).

Disconnect that battery and control units (see: GR. 40-43).

Removal

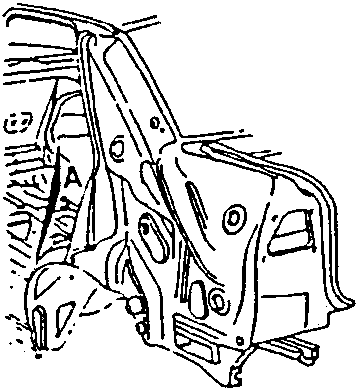

Using a rotating brush, clean the areas to be chamfered in order to show up the welds.

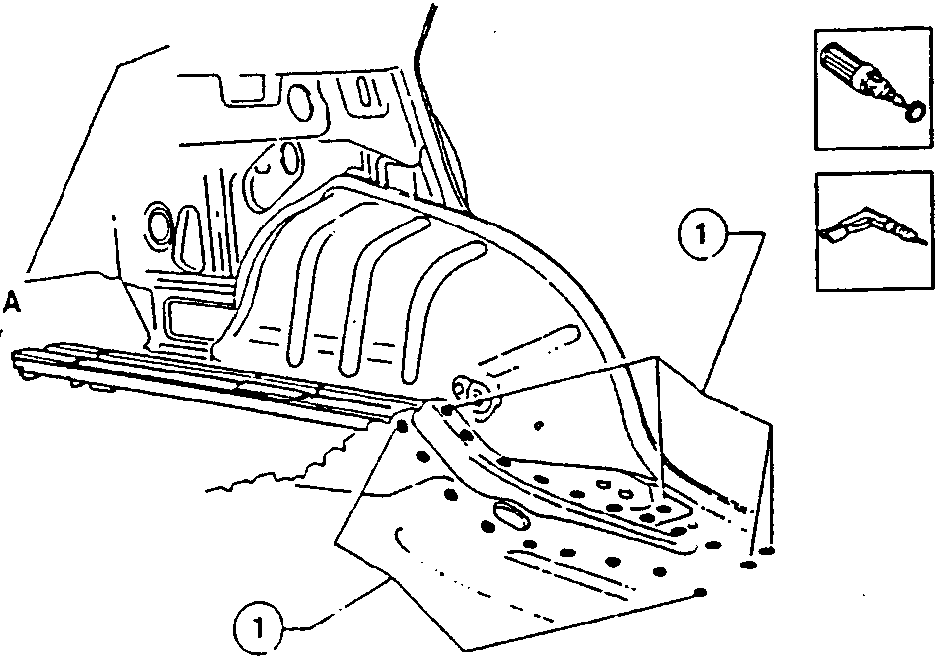

1. Remove the welds with a drill.

60 Body & interior
