Removal

Removal

• Remove the headlight assembly, front bumper, radiator, horns and anything else which is secured to the crossmember (see: GR. 75 - GR. 40 etc. and REPAIR MANUAL - ENGINES - GR.07).

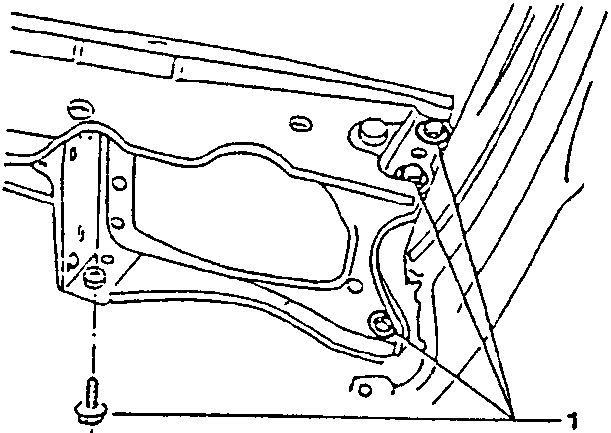

1. Unscrew the bolts and remove the headlight crossmember

Installation and adjustment

• Fix the headlight assembly to the frame (see: GR. 40).

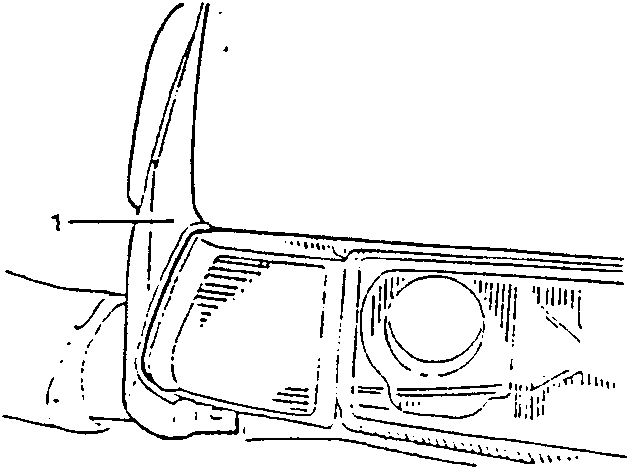

1. Position the crossmembers and adjust its position transversally and longitudinally ensuring that the headlight assembly is correctly aligned with the wing. Tighten the bolts to the prescribed torque and ensure that the bonnet opens and closes properly. Install all the components which were previously removed.

FRONT WING

Removal

• Remove the headlight housing frame.

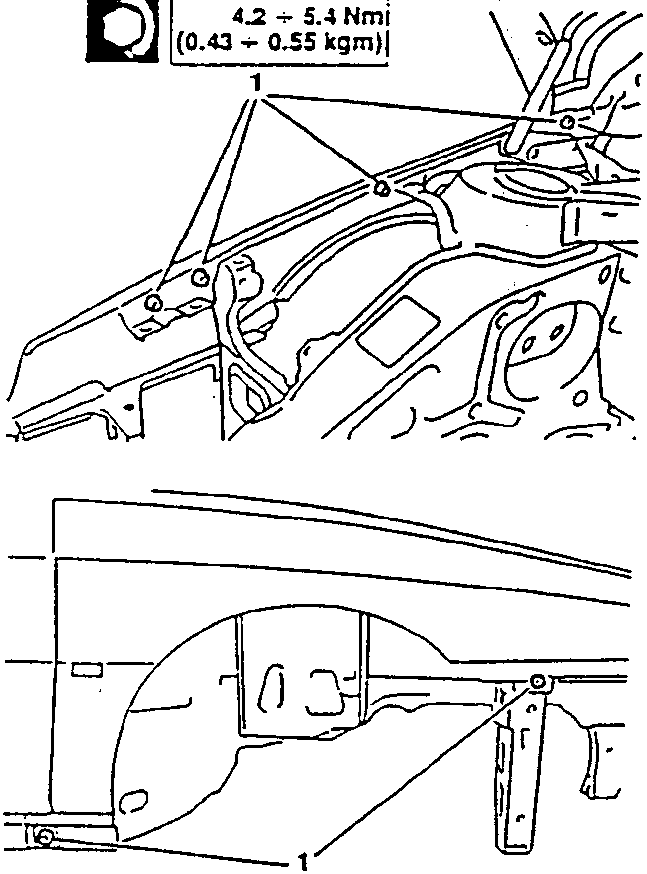

1. Unscrew the six screws securing the wing to the body

• Using a jet of hot air, heat the area between body and wing to loosen the sealant. Remove the wing.

NOTE: Both during removal and installation a blade should be used to facilitate the cutting and removal of the sealant.

4.2 ÷ 5.4 Nm
0.43 ÷ 0.55 kgm
