Index: General information

GENERAL INFORMATION

IDENTIFICATION DATA

Homologation and vehicle identification labels

See: CHARACTERISTICS AND VEHICLE MAINTENANCE - GR. 00 - Vehicle identification data.

1. Identification label
2. Body label
3. Bodywork paint label
4. Engine label

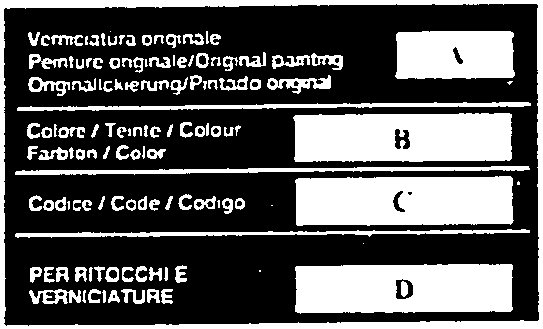

BODYWORK PAINT LABEL

This is located inside the luggage compartment and carries the following information:

• A. Paint manufacturer
• B. Name of colour
• C. Colour code
• D. Touch-up/repainting colour code

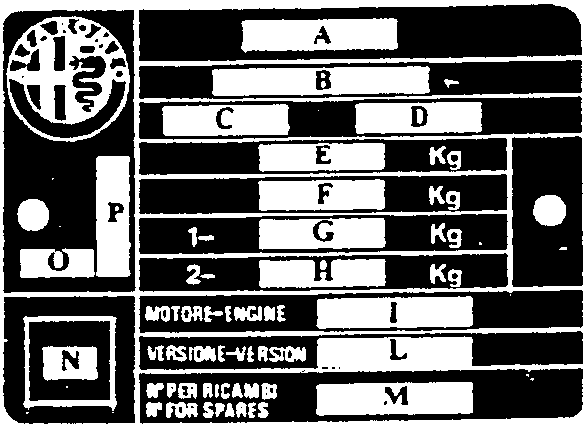

IDENTIFICATION LABEL

This is located in the engine compartment. It carries the following information:

• A. Name of manufacturer
• B. Homologation number
• C. Vehicle type identification number
• D. Chassis serial number
• E. Maximum gross vehicle weight
• F. Maximum gross vehicle weight including trailer
• G. Maximum gross weight on front axle
• H. Maximum gross weight on rear axle
• I. Engine code
• M. Number for spareparts
• N. Smoke opacity index (for diesel and turbo diesel)
• O. Supplier code
• P. Production state
