Welding and finishing of the sheet metal

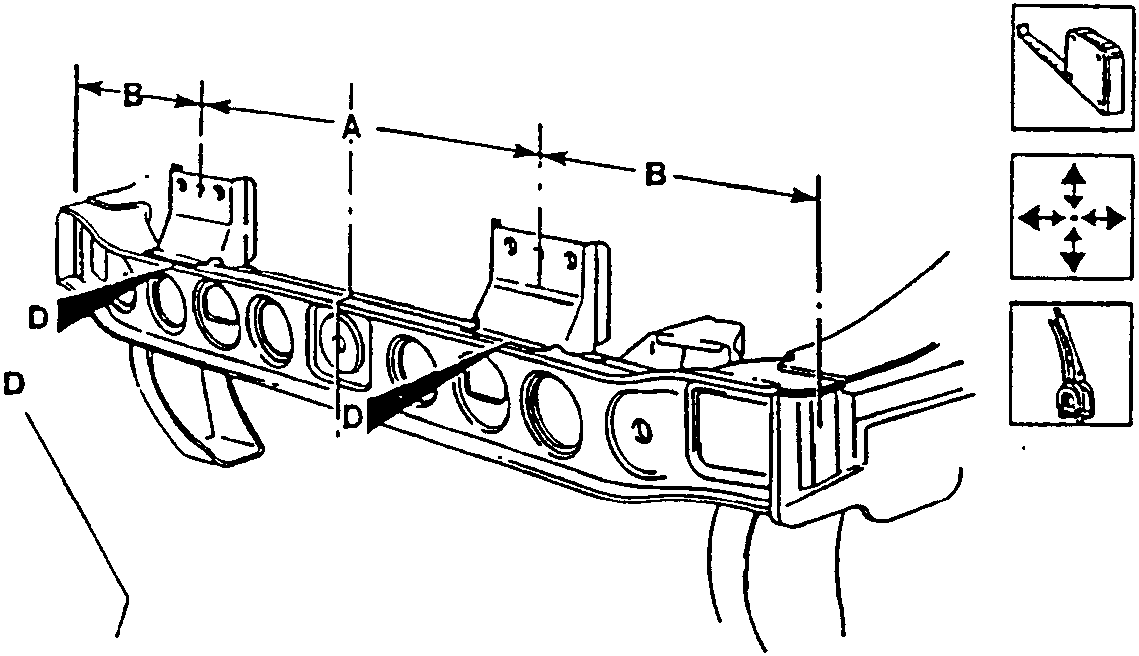

• Position the brackets on the cross member using the following references as indicated in the illustration:

A = mm 476
B = mm 110

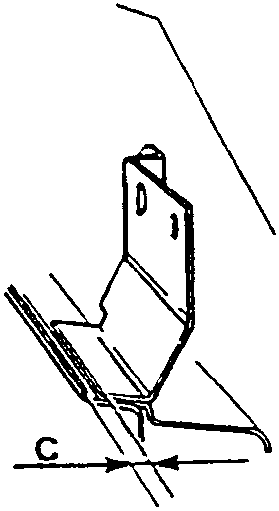

C = mm 5

Welding and finishing of the sheet metal

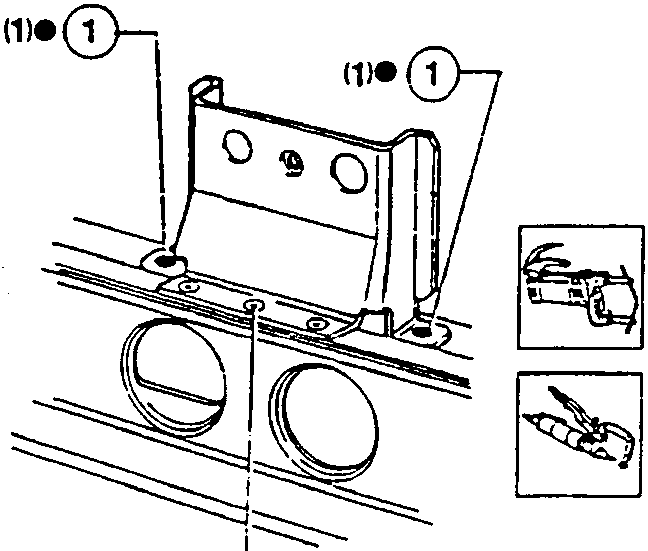

1. Using a spot-welder operate as shown in the illustration.

• Using a rotating brush, clean the welded areas.

• Check that the components are correctly positioned after welding.

Protection

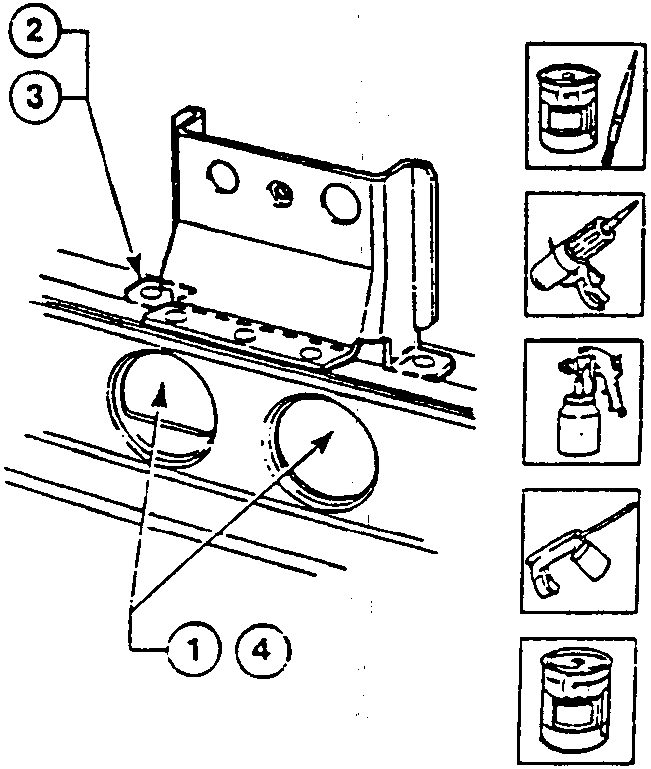

1. Apply Type B rust-proofing to the areas indicated in the illustration.
2. Apply a Type B protection to the areas indicated in the illustration.
3. Apply Type A sealant to the areas indicated in the illustration.

• Proceed to the painting phase.

• Proceed to the waxing phase.
