Alfa Romeo 155 Factory Service Manual (1992-1998)60 · Bodywork
60 · Body & interior

Positioning of welding and finishing of the sheet metal

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Preparation › Positioning of welding and finishing of the sheet metal
BodyworkPositioning of welding and finishing of the sheet metal · page 1 of 2
  • Using a rotating brush clean the areas to be welded.

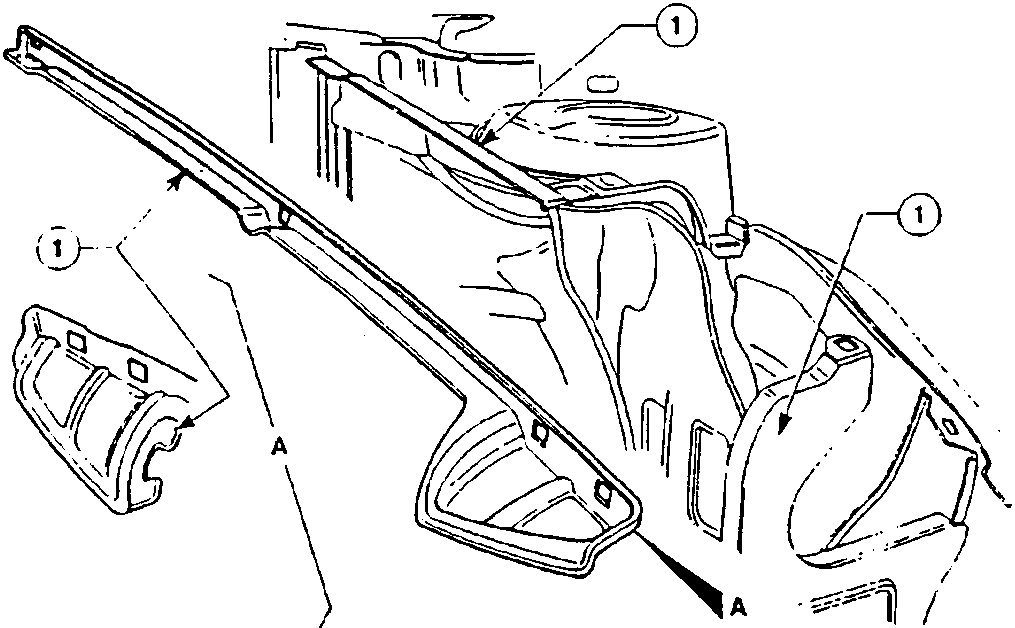

  1. Spread the areas indicated in the illustration with Type A electroweldable protection.
Illustration showing areas to be cleaned and welded, with part numbers 1 and A marked.

Positioning of welding and finishing of the sheet metal

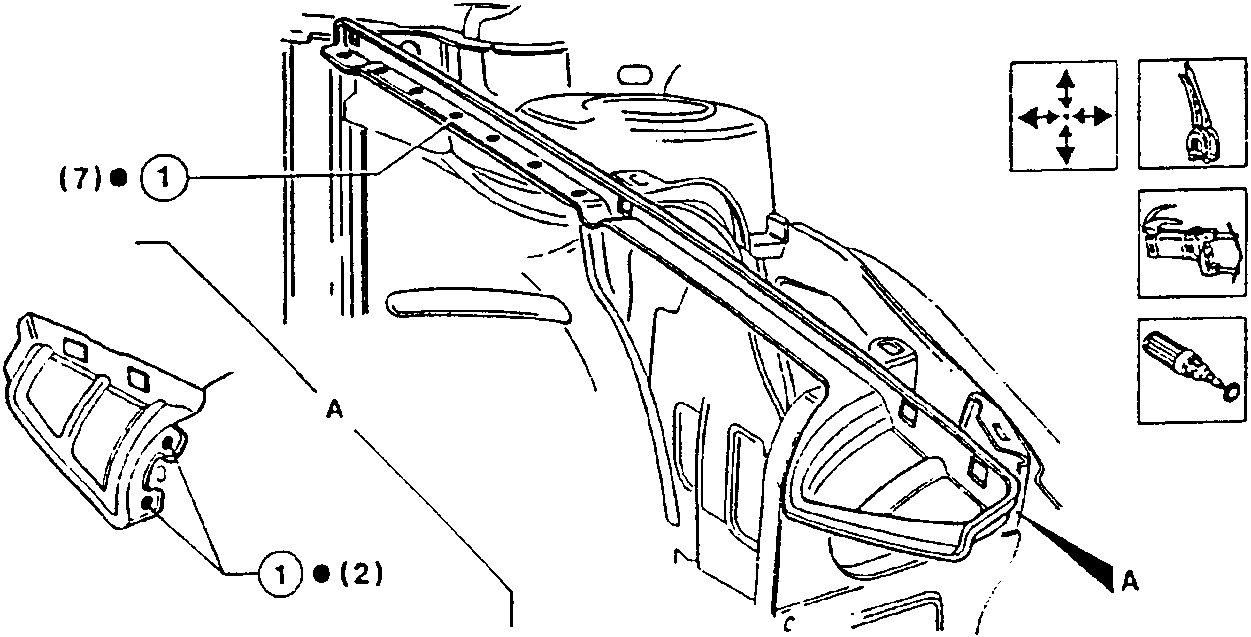

  • Position the new part, secure the components, check alignment and mate the edges.
  1. Using a spot welder proceed as shown in the illustration.
  • Using a rotating brush clean the welded areas.
Illustration showing positioning of new part with part numbers 1, 2, and 7 marked.
