Preparation and Positioning › Positioning
BodyworkPositioning
  • Clean the welding areas with a rotating brush.
  1. Cover the spot welding areas with Type A electro-weldable paste.

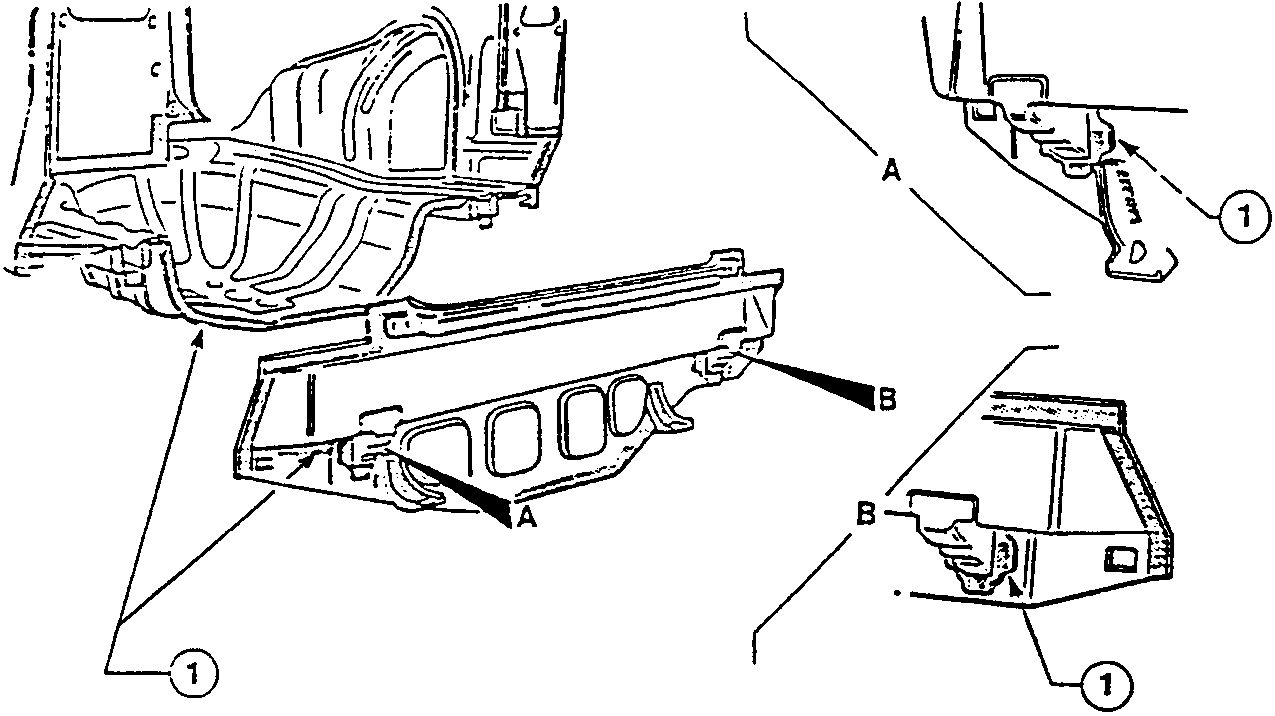

Diagram showing rear trim positioning with parts labeled A and B, and a close-up of a weld area marked 1.

Positioning

  • Position the rear trim, secure and mate the edges and check the alignment.

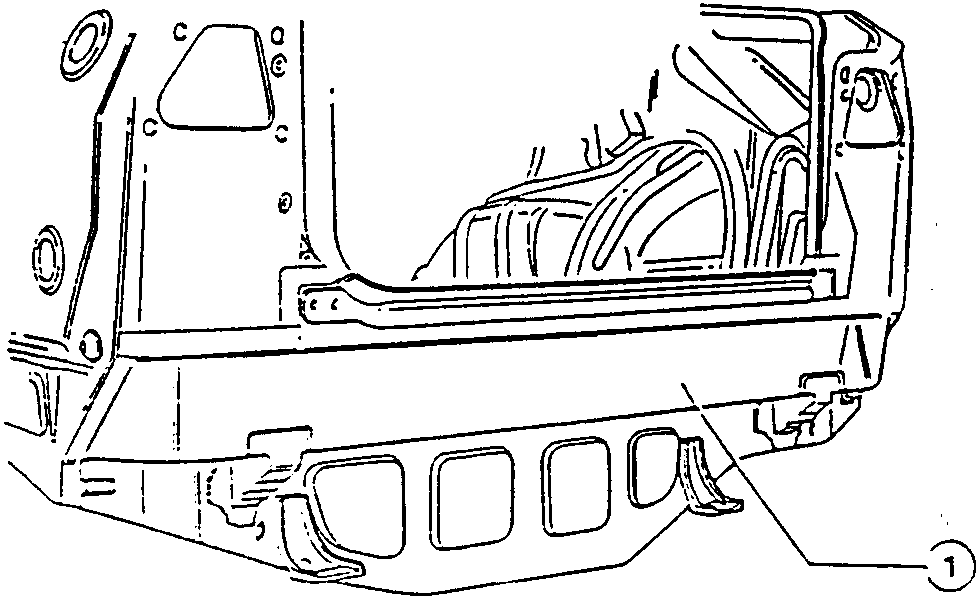

Diagram showing rear trim positioned on the vehicle body with part labeled 1.
