Removal (page 3 of 3)

Preparation

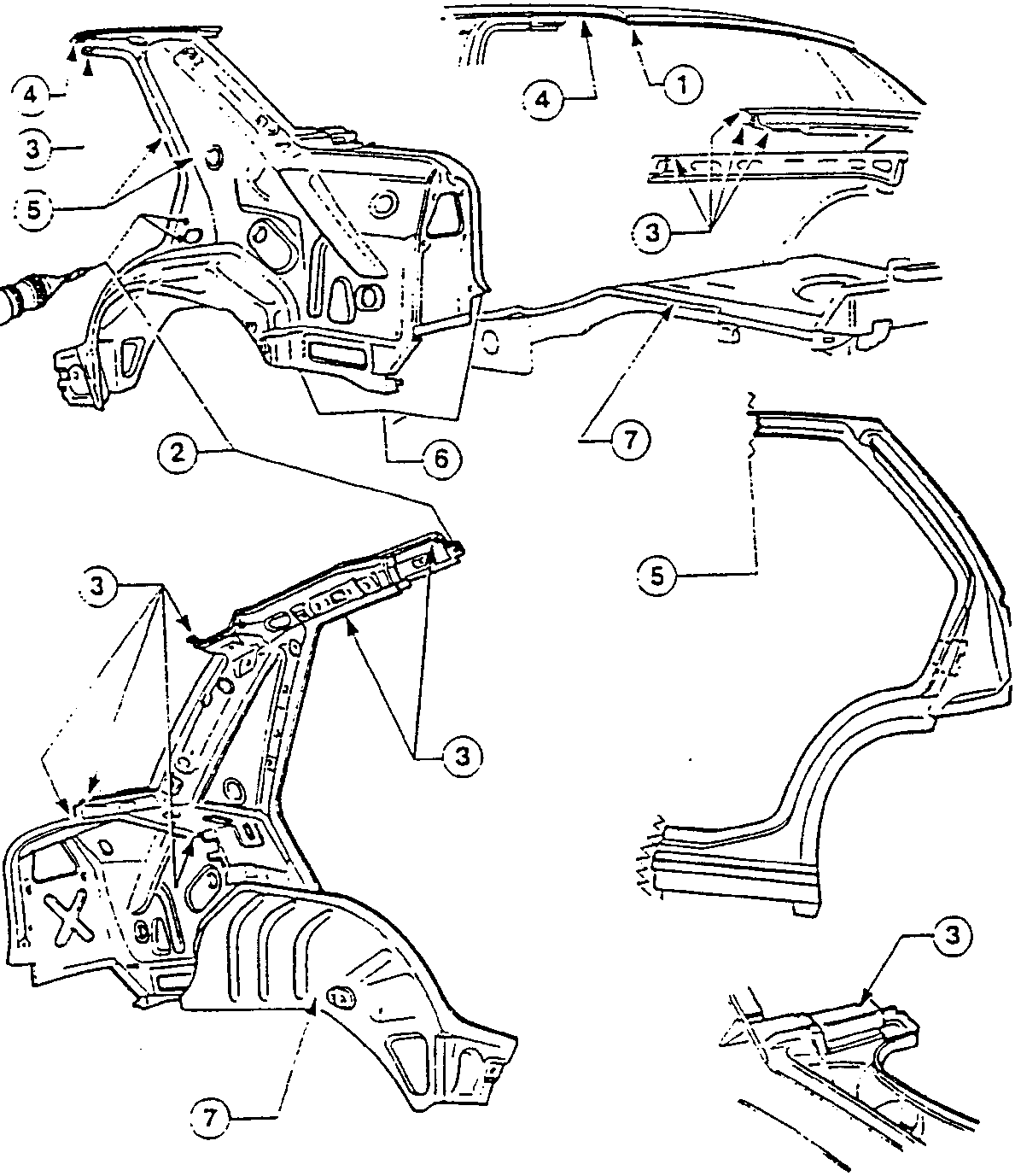

• Using a rotating brush, clean the welding areas on the new side panel and on the vehicle.

1. Using an abrasive grinding wheel, remove and level the welding residues.
2. Prepare the holes for MIG welding using a drill.
3. Spread Type A electroweldable protection on the areas indicated in the illustration.

4. Spread Type A electroweldable paste on the areas indicated in the illustration.
5. See preparation of REAR PILLAR taking into consideration the position of the cut on the upper part of the pillar.
6. See preparation of INNER SIDE FRAME (skin).
7. See preparation of COMPLETE INNER WHEEL HOUSING.
