Alfa Romeo 155 Factory Service Manual (1992-1998)60 · Bodywork
60 · Body & interior

Underbody parts (page 2 of 2)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Underbody parts
BodyworkUnderbody parts · page 2 of 2

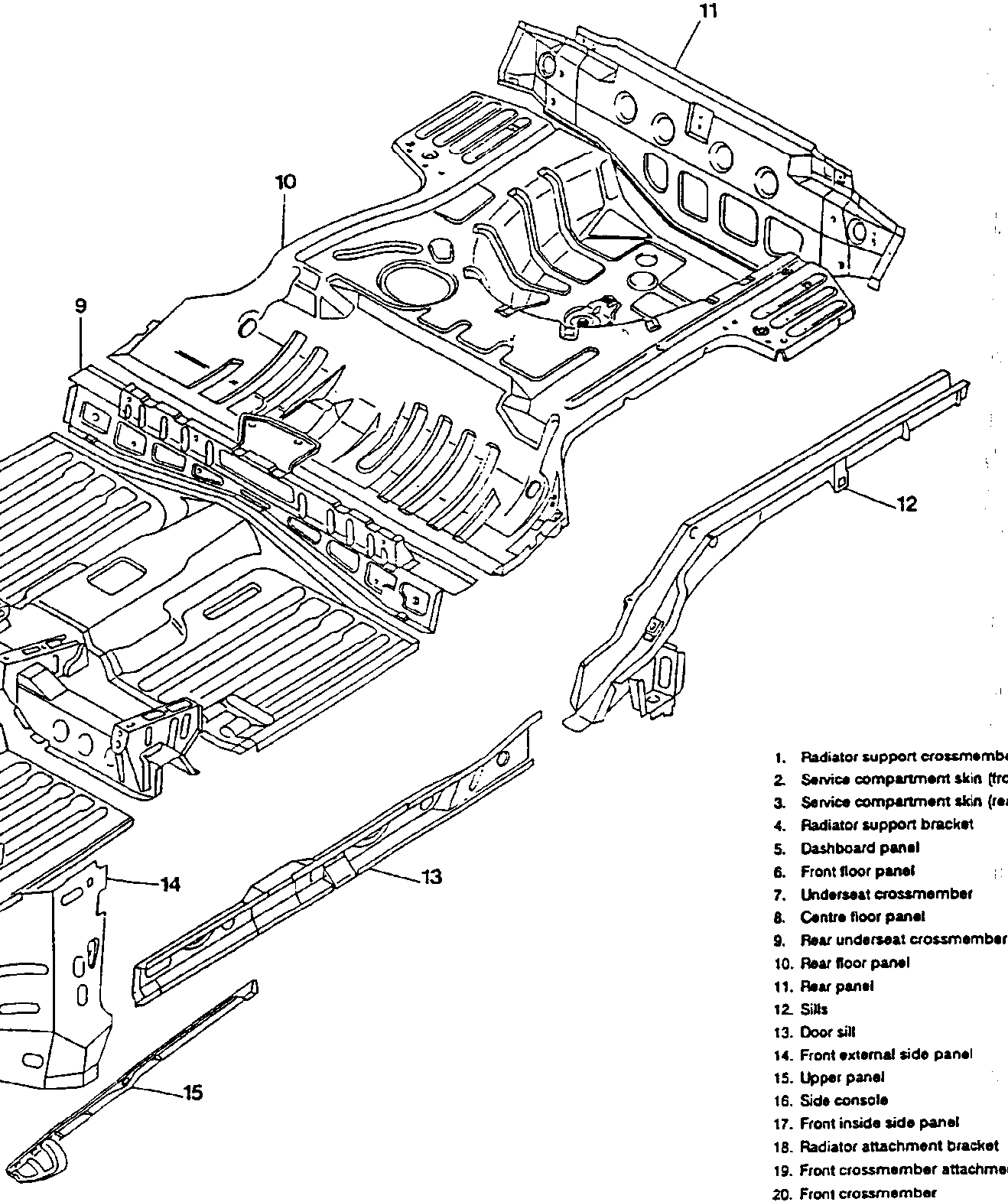

Exploded view of vehicle bodywork components including radiator support crossmember, service compartment skins, dashboard panel, floor panels, sills, door sill, side panels, console, and various attachment brackets.
  1. Radiator support crossmember
  2. Service compartment skin (front)
  3. Service compartment skin (rear)
  4. Radiator support bracket
  5. Dashboard panel
  6. Front floor panel
  7. Underseat crossmember
  8. Centre floor panel
  9. Rear underseat crossmember
  10. Rear floor panel
  11. Rear panel
  12. Sills
  13. Door sill
  14. Front external side panel
  15. Upper panel
  16. Side console
  17. Front inside side panel
  18. Radiator attachment bracket
  19. Front crossmember attachment bracket
  20. Front crossmember
  21. Front bumper attachment bracket
