Removal
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Upper rear cross-member › Removal
BodyworkRemoval

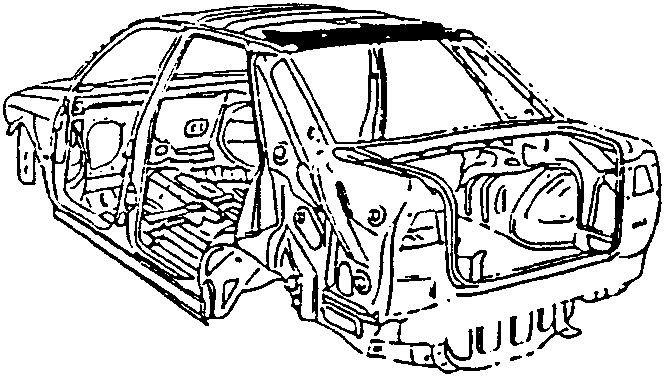

(roof panel removed)
- In order to facilitate the successive operations, the following components should be temporarily removed:
- front and rear doors (see: GR. 55);
- internal trim (see: GR. 66);
- external trim (see: GR. 75);
- rear and front windcreens (see: GR. 75).
- Disconnect the battery and control units (see: GR. 40-43).
Removal

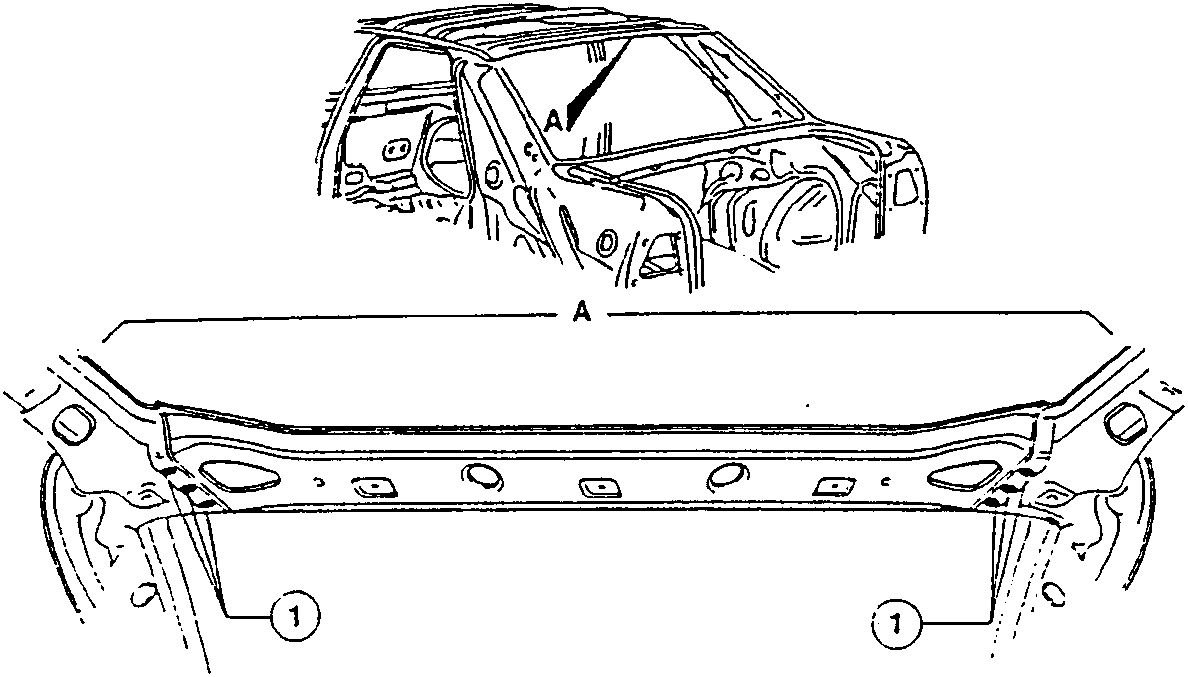

- Using a rotating brush, clean the area to be chamfered in order to show up the welds.
- Using a chamfering machine remove the welds.
[illegible]
