Welding and finishing of the sheet metal › Positioning
BodyworkPositioning

Positioning

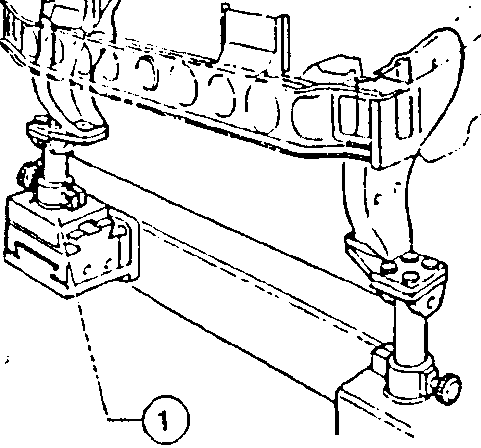

  1. Using the jig, correctly position the new part and secure and mate the edges.

Welding and finishing of the sheet metal

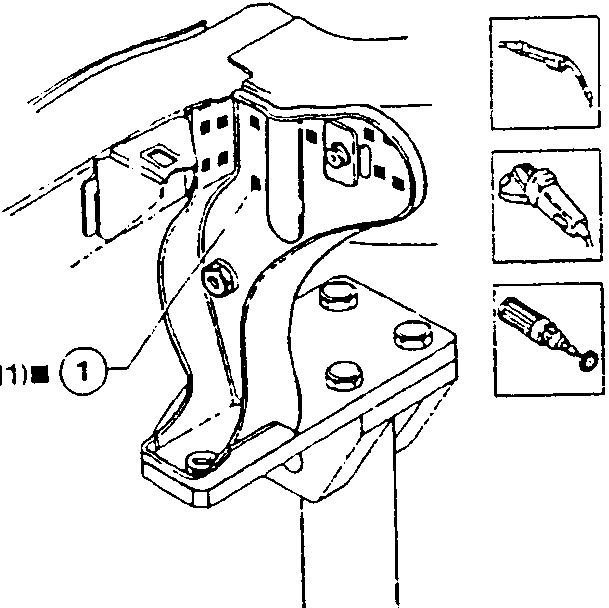

  1. Using a MIG welder perform filling welding.
Shows vehicle frame with suspension components and numbered part
Illustration showing a component with bolts and a rotating brush for cleaning welded areas.
  • Using an abrasive grinding machine remove and level the residues left by the welding.
  • Using a rotating brush, clean the welded areas.
  • Check that the components are correctly positioned after welding.

Protection

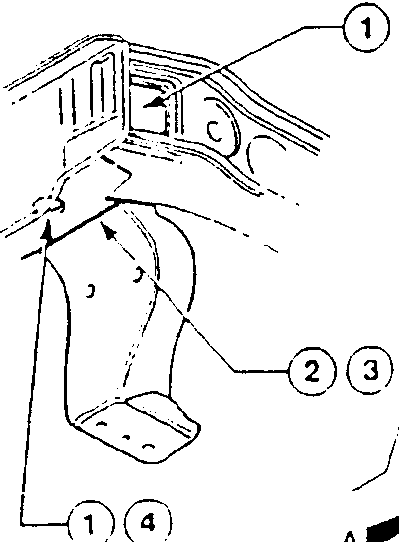

  1. Spread the areas shown in the illustration with Type B rust- proofing.
  2. Apply Type A rust-proofing to the areas shown in the illustration.
Illustration showing areas for applying Type B and Type A rust-proofing, marked with numbers 1, 2, 3, and 4.

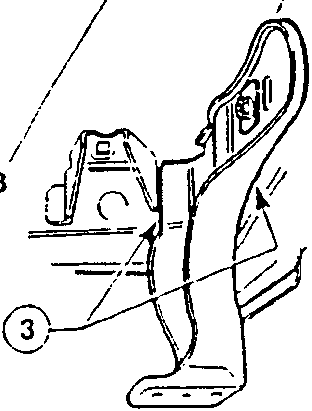

Illustration showing a component with areas for applying sealant, marked with numbers 2 and 3.
  • Apply Type A sealant to the areas shown in the illustration.
  • Proceed to the painting phase.
  • Proceed to the waxing phase.
Icon of a spray can for applying sealant or rust-proofing.
Illustration showing a close-up of a component with areas marked 2 and 3 for rust-proofing.
Icon of a waxing tool for applying wax to the surface.
