Windscreen frame installation › Positioning
BodyworkPositioning

Positioning

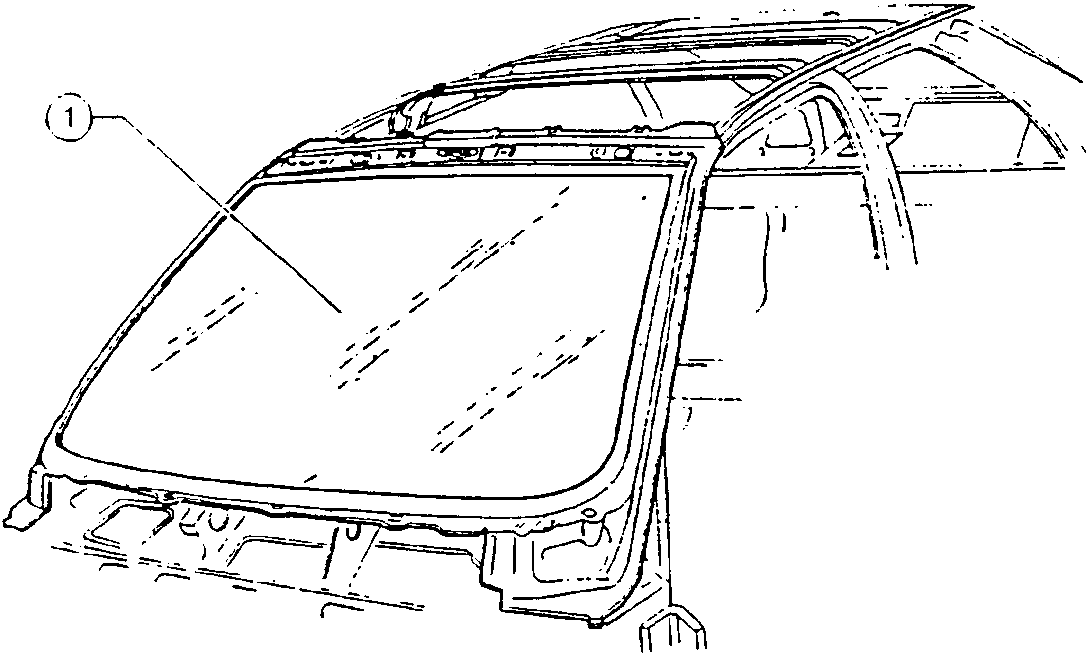

  1. Correctly position the windscreen frame on the vehicle and using the front windscreen and the rear doors as a dima, check the alignments.
Windscreen frame positioned on vehicle with alignment indicators
  • Secure the components to be welded, mate the edges and check alignment.

Welding and finishing of the sheet metal

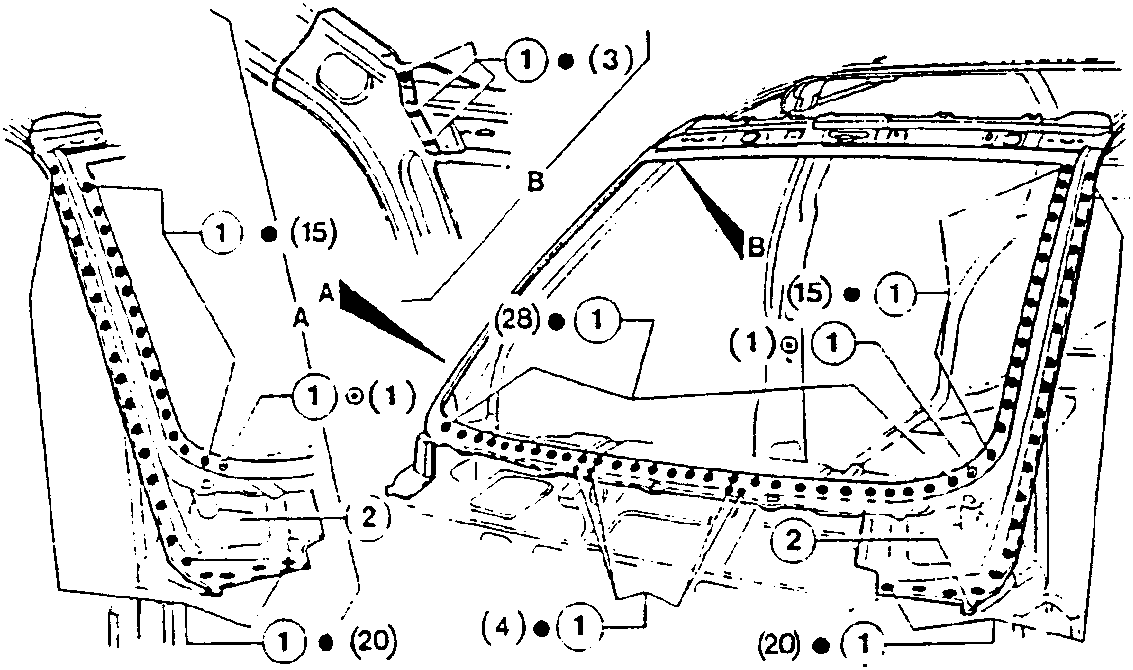

  1. Using a spot welder, operate as indicated in the illustration.
  2. Prepare the clinching tabs.
Detailed view of windscreen frame welding points and clinching tabs
  • Using a rotating brush, clean the welding areas.

NOTE: Checking installation of the frame can only be carried out with the roof panel installed on the vehicle (see: ROOF PANEL - Checking).
