Alfa Romeo 155 Factory Service Manual (1992-1998)62 · Boot and bonnet
62 · General

Removal and installation

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Bonnet release control › Removal and installation
Boot and bonnetRemoval and installation

REMOVAL AND INSTALLATION

  • Disconnect the negative lead (-) from the battery.

Working from inside the vehicle:

  1. Remove the rubber protection.

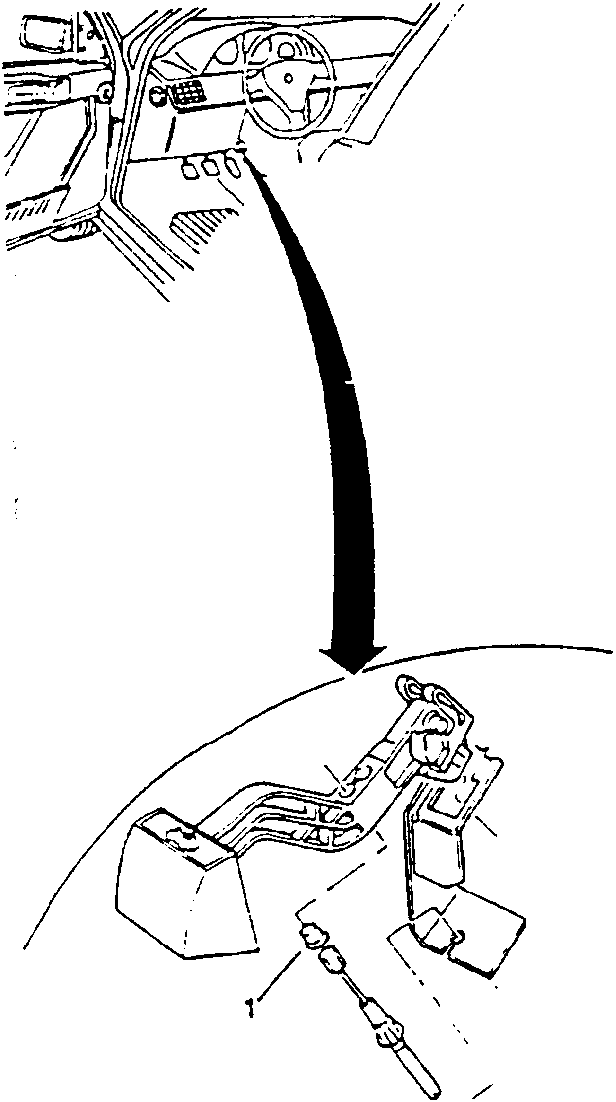

Bonnet release control cable removal view
  1. Slide the release control cable off the lever seating.
  2. Using a screwdriver, apply leverage to the securing wings and, unhook and remove the cable from the lever bracket.
  3. Using a pair of pliers remove the cable from the lever seating bracket.
  4. Tie a thread to the end of the control cable in order to facilitate installation of the new cable.

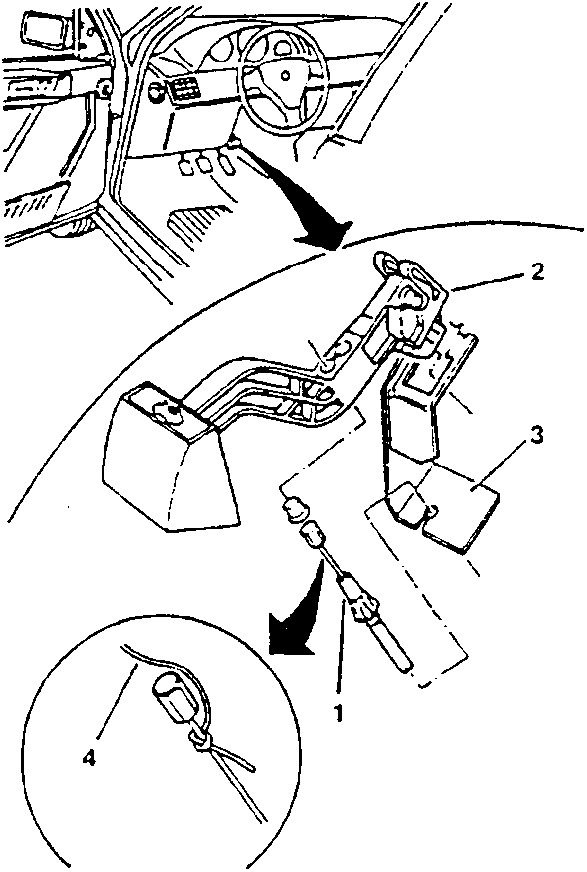

Close-up of bonnet release control cable end with thread tied
