Warning:

• Top up the brake clutch fluid reservoir to the MAX mark with the specified fluid.
• If necessary remove the wheel on which you are working.

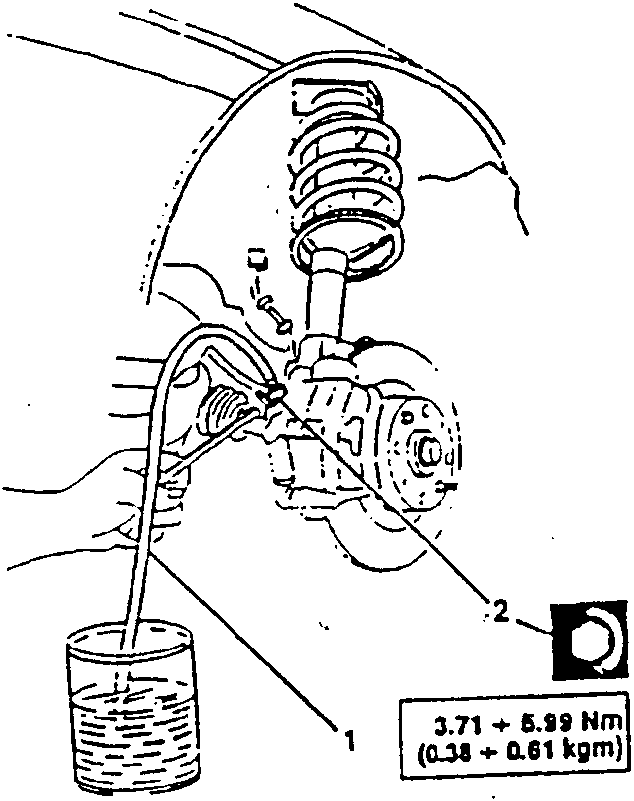

1. Push the flexible hose onto the drain screw. Submerge one end of the hose in a container filled with the specified fluid.
2. Loosen the drain screw and repeatedly press the brake pedal (wait a few seconds each time) and when bubble-free fluid begins to drain into the container, fully depress the brake pedal and tighten the drain screw to the correct torque.

NOTE: Each wheel must be bled separately.

3.71 ÷ 5.99 Nm
(0.38 ÷ 0.61 kgm)

WARNING:

• Ensure that the fluid level does not fall below the minimum when bleeding the system.
• Do not re-use the fluid drained off during the bleeding operations.
• Do not allow the fluid to come into contact with painted surfaces.

BLEEDING THE ABS SYSTEM

The hydraulic unit is supplied already filled and bled. When refilling the hydraulic circuit or carrying out and operations to it, it is necessary to proceed as described below.

PROCEDURE FOR BLEEDING

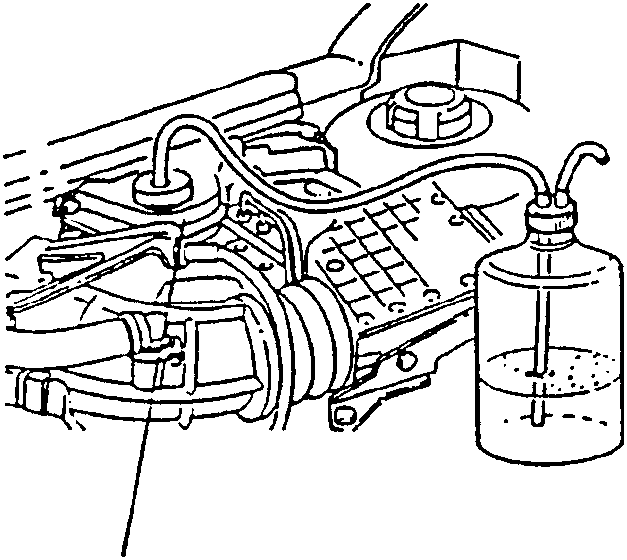

1. Using a suitable bleeding device applies to the brake fluid reservoir, carry out the bleeding operations in the following order:

1. Front left-hand wheel
2. Front right-hand wheel
3. Rear left-hand wheel
4. Rear right-hand wheel.

(see: AIR BLEED)
