Adjusting the control cable

ADJUSTING THE CONTROL CABLE

The handbrake must only be adjusted after the brake pads, control cable or brake caliper has been replaced as the recovery distance, which varies with wear, is automatic.

• Remove the leather trim from the handbrake lever.

1. With the handbrake cables disconnected from the rear calipers, depress the brake pedal at least ten times with force.

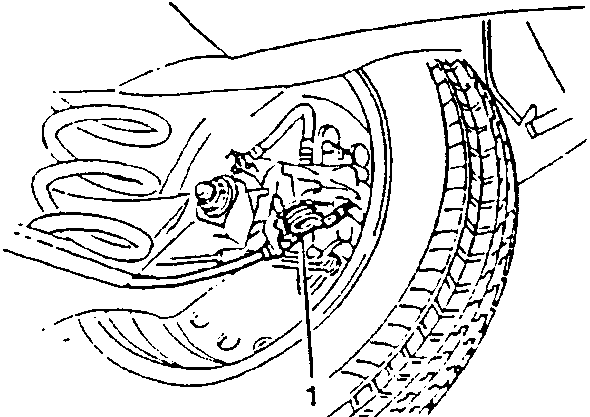

2. Attach the handbrake cables to the calipers.
3. Adjust the handbrake lever to the third detent on the sector gear.

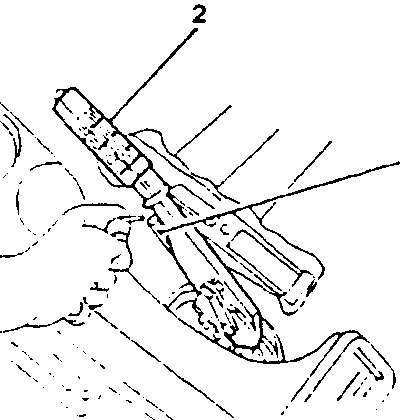

4. Using a spanner tighten the adjustment nut until a braking force is applied to the rear wheels.

NOTE: With the lever in the rest position, check that the wheels rotate freely.

BRANDING REGULATOR

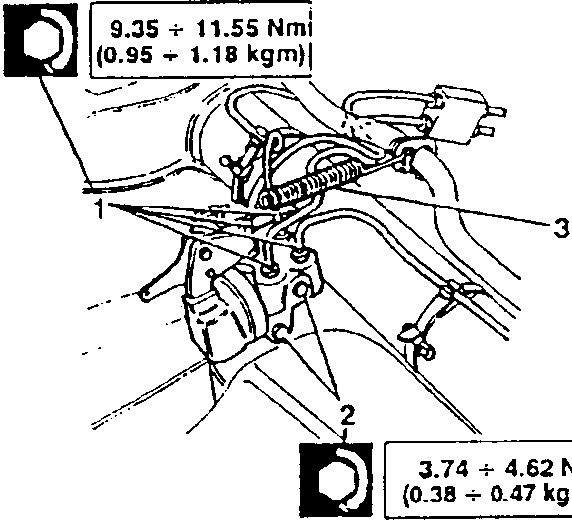

REMOVAL AND REFITTING

1. Disconnect the pipe connections.
2. Remove the screws securing the regulator.
3. Disconnect the spring and remove the regulator.

Refit by reversing the procedure followed for removal and tighten the regulator retaining screws to the correct torque. When refitting bleed the air from the braking system (see: AIR BLEED).

9.35 ÷ 11.55 Nm
(0.95 ÷ 1.18 kgm)

3.74 ÷ 4.62 Nm
(0.38 ÷ 0.47 kgm)

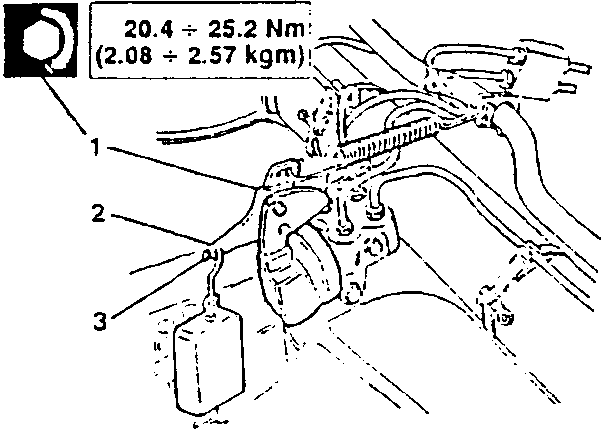

ADJUSTMENT

• Ensure that the vehicle is fit to travel i.e. full fuel tank, engine coolant, spare tyre and accessories.
• Place the vehicle on a level surface with the wheels on the ground in order to settle the suspension.

1. Loosen the screw securing the bracket.
2. Attach a 5 ± 0.5 kg weight to the hook.
3. Keeping the bracket in this position, lock the retaining screw to the correct torque.

20.4 ÷ 25.2 Nm
(2.08 ÷ 2.57 kgm)
