Rear brakes

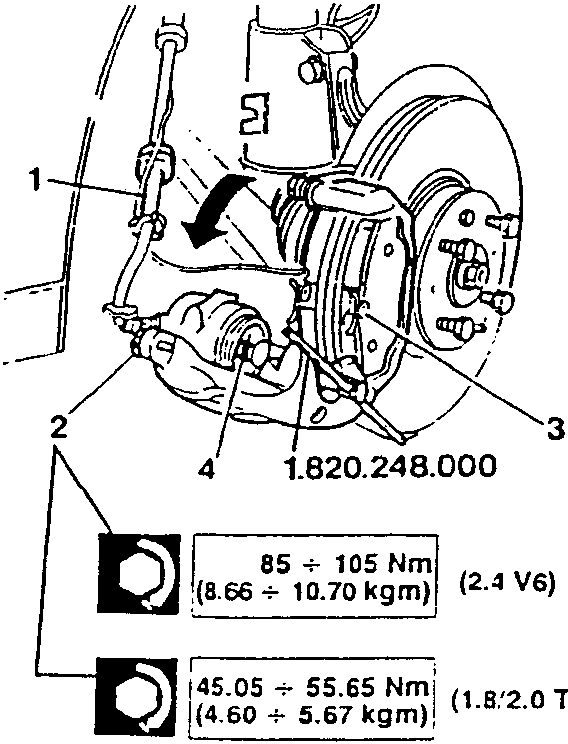

• Remove the front wheel.

1. Disconnect the brake pad wear sensor connector.
2. Loosen the upper screw securing the brake caliper and rotate it as shown in the illustration.
3. Substitute the brake pads.

NOTE: The brake pad and wear sensor must installed on the inner side of the disc (caliper piston side). Also check that the exhaust, located on the external part of the brake pad, is positioned to the rear of the direction of travel.

4. When refitting the brake caliper adjust the position of the piston using tool No. 1.820.248.000.

When refitting substitute the screw previously removed from the caliper body and tighten to the correct torque.

85 ÷ 105 Nm
8.66 ÷ 10.70 kgm

45.05 ÷ 55.65 Nm
4.60 ÷ 5.67 kgm

REAR BRAKES

REMOVAL AND REFITTING

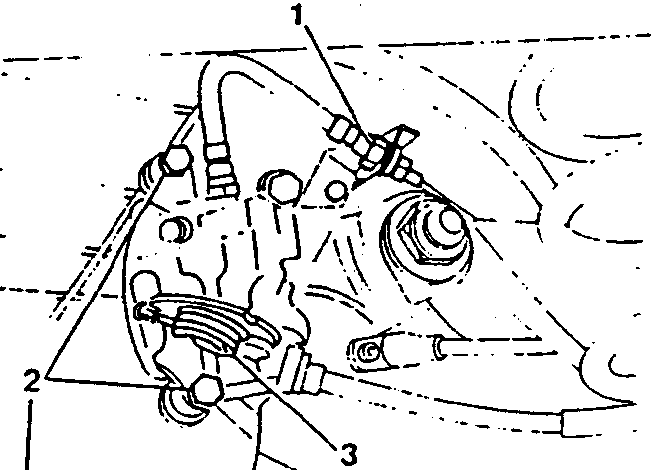

• Remove the wheel from the appropriate side.

1. Disconnect hose connection.
2. Loosen the two screws securing the brake caliper body and remove the brake caliper.
3. Disconnect the handbrake control cable from the brake caliper.

● When refitting substitute the screws securing the caliper body.
● When refitting check that the rubber boots are not damaged. If they are they must be replaced.
