ClutchRemoval and refitting

REMOVAL AND REFITTING

  1. Disconnect the clutch pedal return spring.
  2. Remove the cotter pin and withdraw the pin connecting the pump to the clutch pedal.
  3. Loosen and remove the through screw on the clutch pedal together with the washers and spacers and then disconnect the clutch pedal.

Refit, by reversing the procedure followed for removal and tightening the through screw on the clutch pedal to the correct torque. When refitting, grease the components securing the clutch pedal using the specified grease.

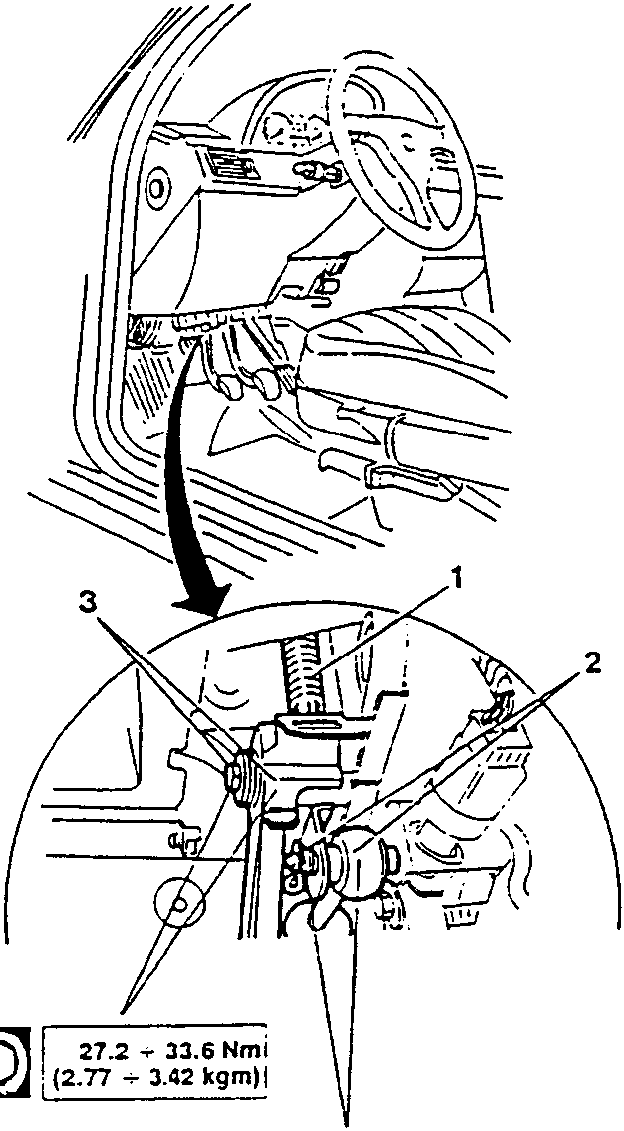

Clutch pedal assembly with numbered parts and torque specification box

27.2 ÷ 33.6 Nm
(2.77 ÷ 3.42 kgm)

HYDRAULIC FLUID RESERVOIR

See: GR. 22 - CLUTCH AND BRAKE FLUID RESERVOIR.
