Window seals

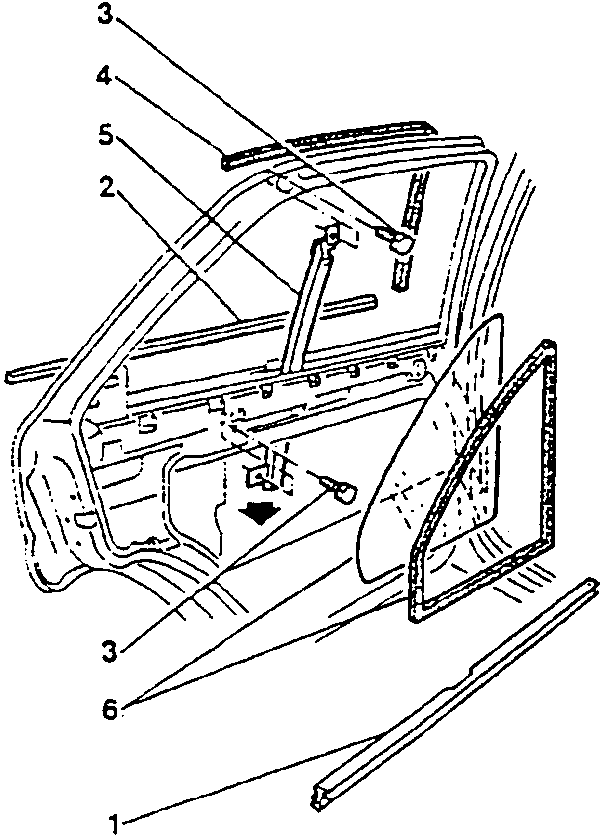

WINDOW SEALS

REMOVAL AND REFITTING

• Lower the door window.
• Disconnect the negative (-) cable from the battery.
• Remove the door panel (see: PANEL).

1. Remove the internal sealing strip.
2. Remove the external sealing strip.
3. Loosen the screws securing the fixed window pillar and lower it enough to be able to remove the sealing strip.
4. Withdraw and remove the velvet perimeter strip.

To refit, reverse the procedure followed for removal and observe the following:

• For the refitting of components dealt with in other pages of this or other groups, refer to the relevant procedures and advice.

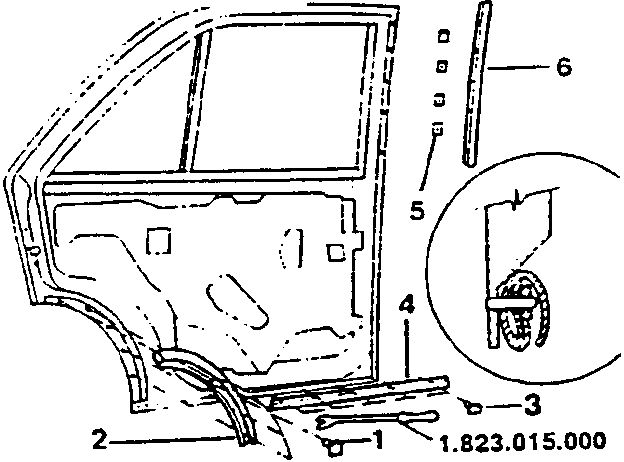

LOWER DOOR FINISHING STRIP

REMOVAL AND REFITTING

1. Using tool 1.823.015.000 disconnect the five buttons securing the wheel housing strip to the door.
2. Remove the wheel housing strip.
3. Using tool 1.823.015.000 disconnect the five buttons securing the lower strip to the door.
4. Remove the lower strip.
5. Disconnect the front strip from the five retaining hooks.
6. Remove the strip.

To refit, reverse the procedure followed for removal.
