Electrical 02 – FuseboxLocation of fuses and relays

The list of fuses contained in fusebox G1 is also given along with the relative amps and indications regarding the circuits protected

N. FUSIBILE	AMPERAGGIO	CIRCUITS PROTEtti
1	10A	Hazard warning lights
2	20A	Horns, Cigar lighters, Stoplights, Boot release, Radio,
3	20A	Windscreen wipers
4	20A	Roof light timer
5	10A	Control lighting, Rear left and front right sidelights, RH numberplate light
6	10A	Control lighting, Rear right and front left sidelights, LH numberplate light
7	10A	RH dipped beam headlight
8	10A	LH dipped beam headlight
9	10A	RH main beam headlight
10	10A	LH main-beam headlight (+ warning lamp)
11	7.5A	Rear foglamp (+ warning lamp)
12	30A	Heated rear window (+ warning lamp), Door mirror defrosters
13	20A	Heating/air conditioning fan, Seat warming, Rear and front power windows, Radio
14	20A	Engine cooling fan (6V)
15	10A	Dashbord, Chock Panel, Windscreen washers, Headlight washers, Reversing lights, Controlled damping suspension solenoid valves, Air conditioning compressor control, Engine electric fan control
16(•)	7.5A	Interior lights, Clock, Air conditioning control unit
17	7.5A	Direction indicators, Door mirror adjustment, Controlled damping suspension
18(•)	20A	Door locks
19	20A	Front foglamps (+ warning lamp)

(•) Fuse to insert in vehicle during pre-consignment phase.

Two schematic diagrams are given below illustrating the location of the fuses, relays and the position of the connectors.

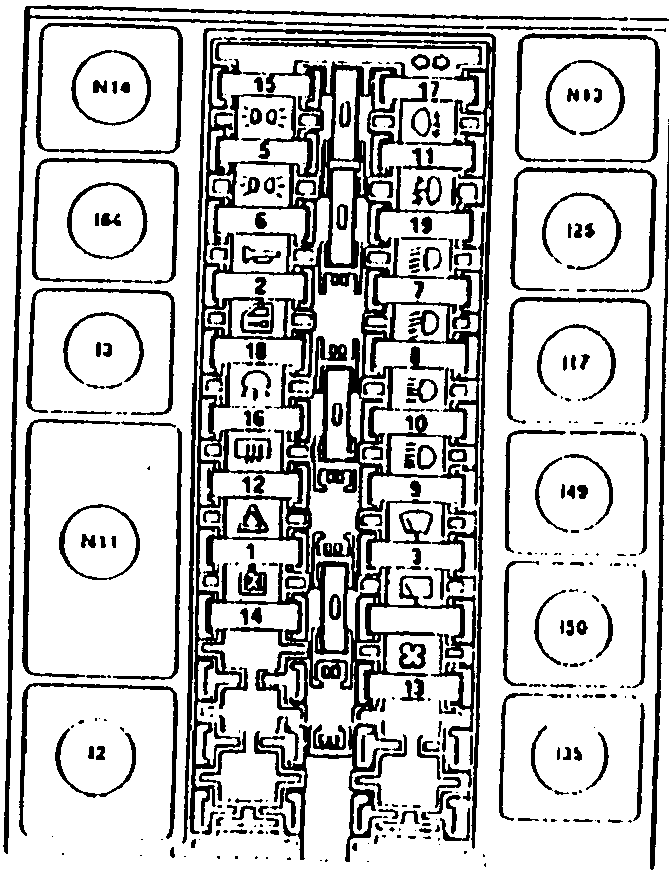

LOCATION OF FUSES AND RELAYS

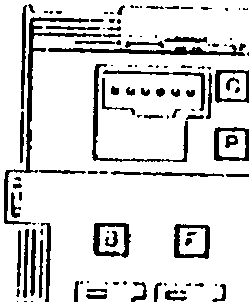

REAR VIEW, CONNECTORS SIDE
