Alfa Romeo 155 Factory Service Manual (1992-1998)14 · Electrical 03 – Location of grounds
14 · Electrical

Abs g272 pin 3

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
General description › Abs g272 pin 3
Electrical 03 – Location of groundsAbs g272 pin 3

G53b

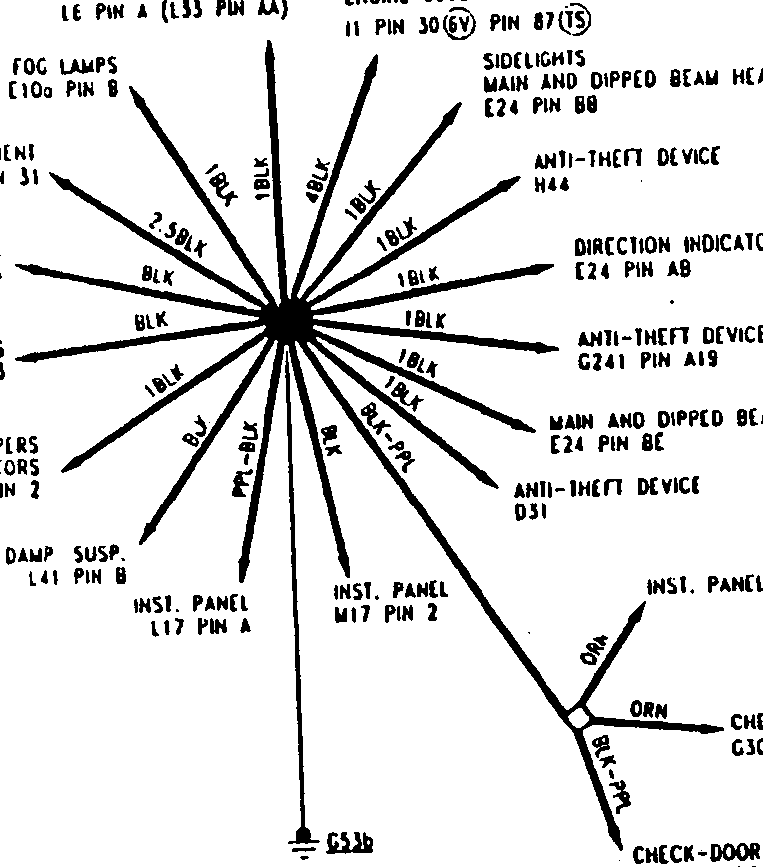

Grounding diagram for various vehicle systems including air conditioning, engine cooling, headlights, wipers, and anti-theft devices.

ABS G272 PIN 3

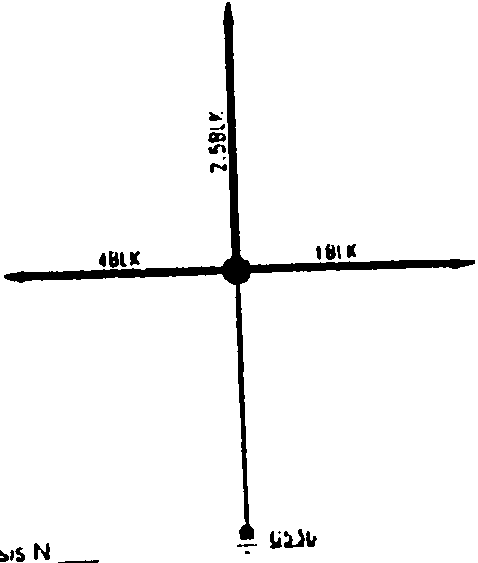

Grounding diagram for ABS system components including G272, G2C2, and ABS 11.

(*) up to chassis N

(**) from chassis N

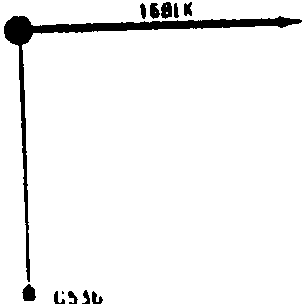

Grounding diagram for supply at (-) with connection to G53b.
