11 199J (page 2 of 2)
- Make
- Alfa Romeo
- Model
- 155 Factory Service Manual
- Year
- 1992–1998
- Section
- Components and connectors
Electrical 04 – Sidelights11 199J · page 2 of 2

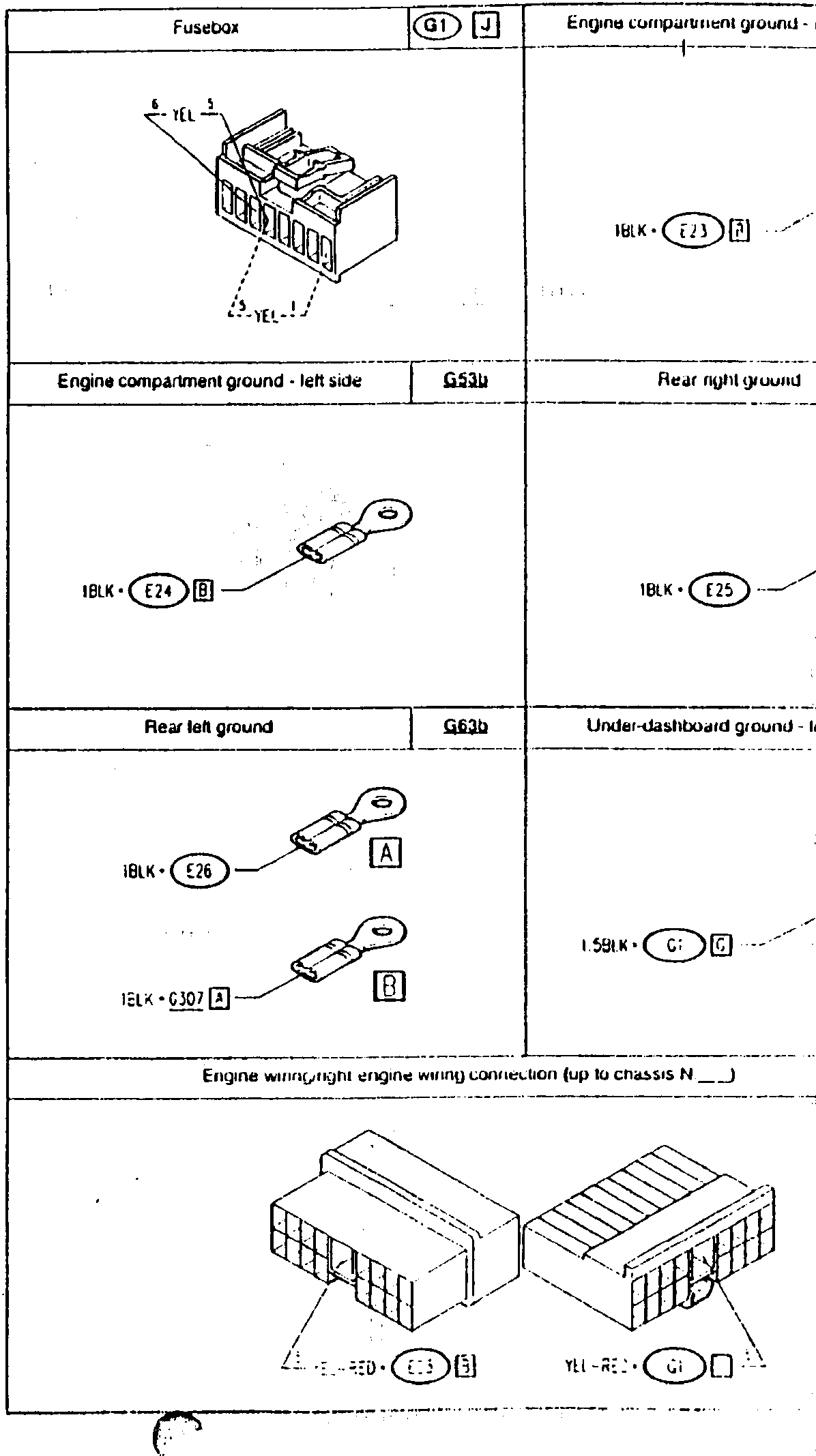

| Fusebox | G1 J | Engine compartment ground - right side | G53a | |
|---|---|---|---|---|
|
|
|||
| Engine compartment ground - left side | G53b | Rear right ground | G63a | |
|
|
|
|||
| Rear left ground | G63b | Under-dashboard ground - left side | G148b | |
|
|
|
|||
| Engine wiring/right engine wiring connection (up to chassis N___) | G30b | |||
|
|
||||
