Components and connectors › Components and connectors

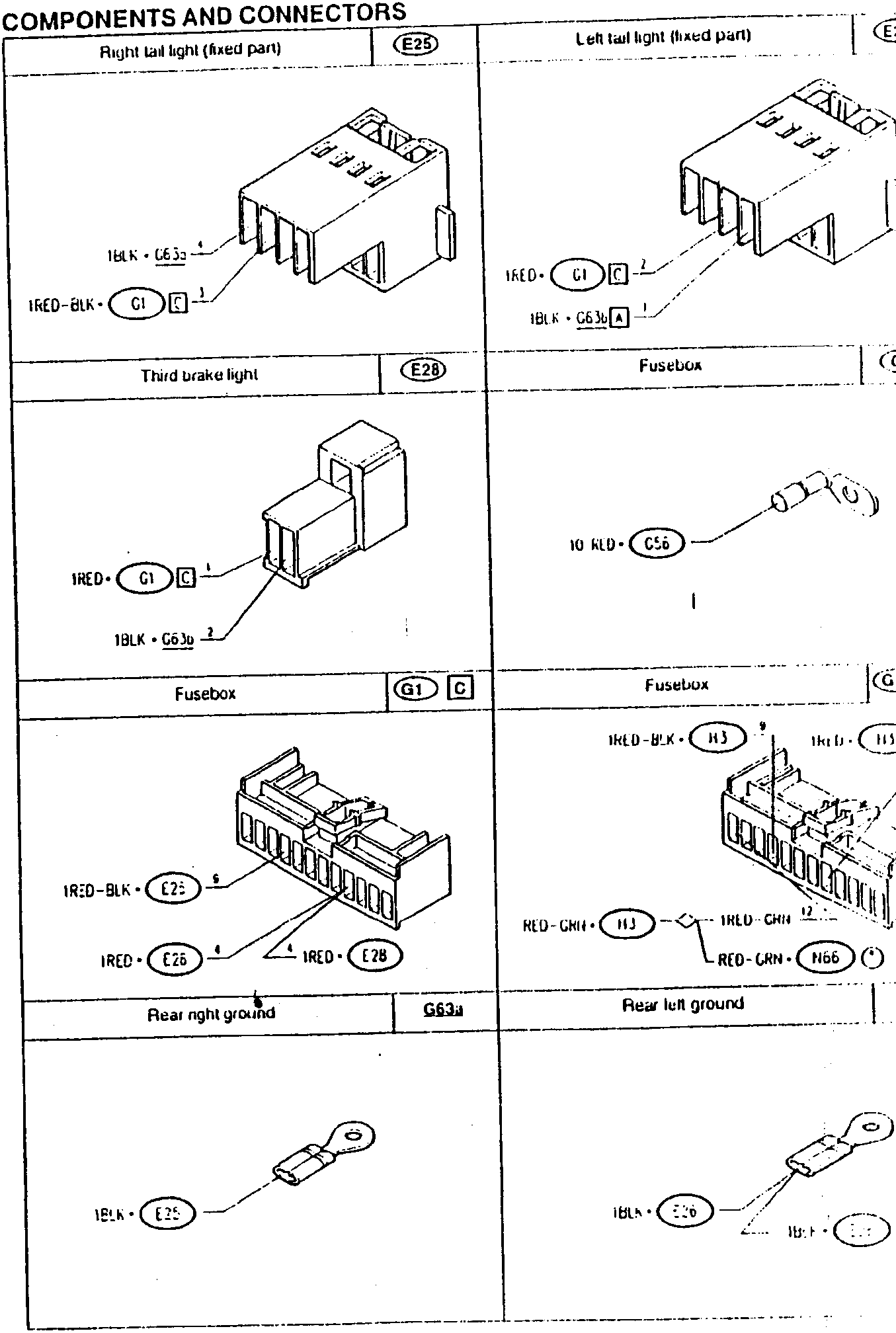

Electrical 09 – Stop lightsComponents and connectors

Right tail light (fixed part)	E25	Left tail light (fixed part)	E26
	1BLK • G63a 1RED-BLK • G1 C 3		1RED • G1 C 2 1BLK • G63b A 1
Third brake light	E28	Fusebox	G1
	1RED • G1 C 4 1BLK • G63b 2		10 RED • C56
Fusebox	G1 C	Fusebox	G1 H
	1RED-BLK • E25 9 1RED • E26 4 1RED • E28		1RED-BLK • H3 9 1RED • H3 3 RED-GRN • H3 12 RED-GRN • N66
Rear right ground	G63a	Rear left ground	G63b
	1BLK • E25		1BLK • E26 1BLK • [illegible]

(*) from chassis N. 2521
