Alfa Romeo 155 Factory Service Manual (1992-1998)24 · Electrical 12 – Interior lighting
24 · Electrical

Functional Description (page 2 of 2)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Functional Description
Electrical 12 – Interior lightingFunctional Description · page 2 of 2

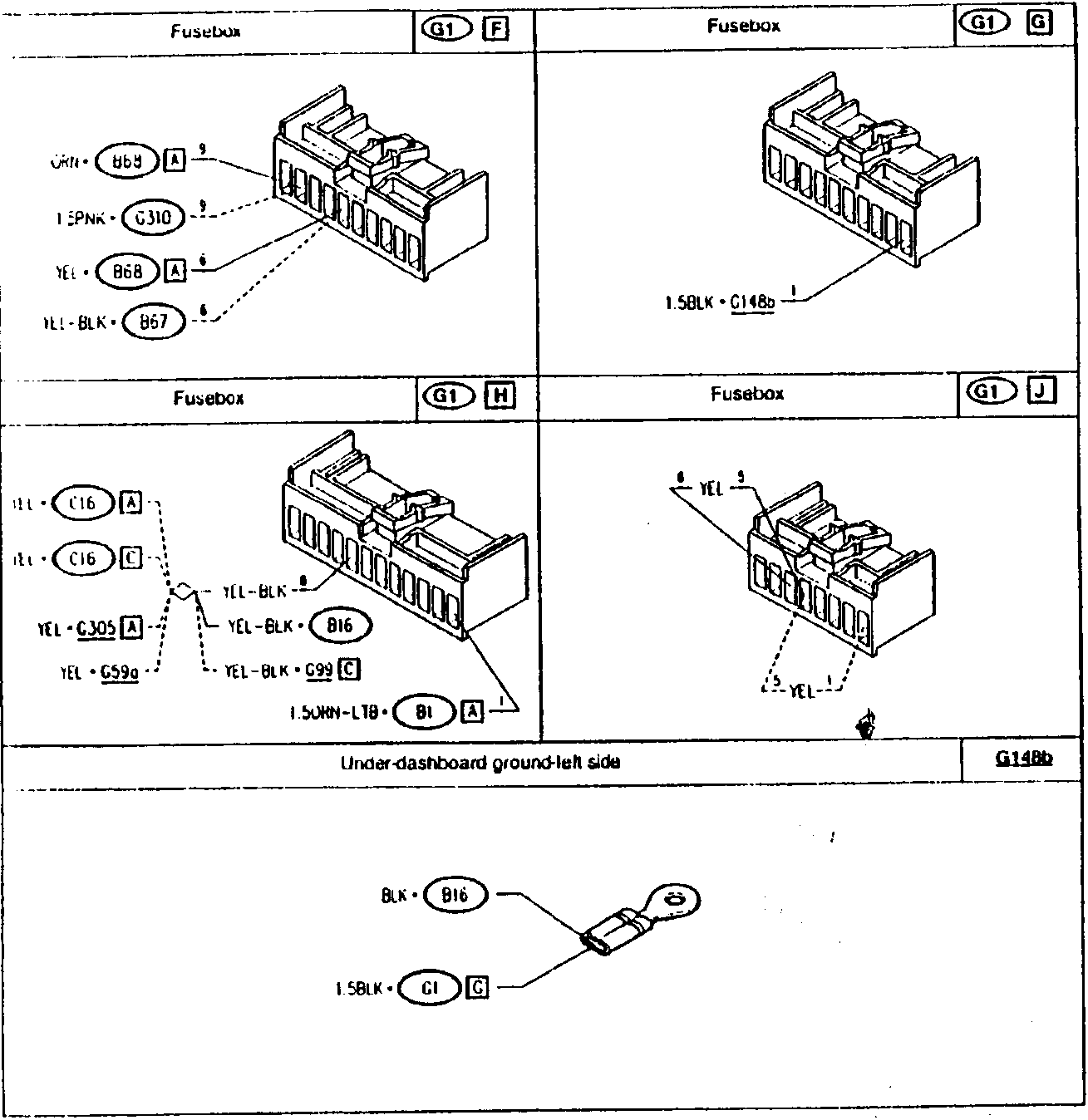

Fusebox G1 F Fusebox G1 G
G1 H Fusebox G1 J Fusebox
Fusebox diagram with connections labeled: GRN • B64 A 9, LSPNK • G310 9, YEL • B68 A 6, YEL-BLK • B67 6.
Fusebox diagram with connection labeled: 1.5BLK • G148b 1.
Fusebox diagram with connections labeled: LTL • C16 A, LTL • C16 C, YEL • G305 A, YEL-BLK • B16, YEL-BLK • G99 C, 1.5UKN-LTB • B1 A.
Fusebox diagram with connections labeled: 6 YEL 5, 3 YEL 1.

Under-dashboard ground-left side

Diagram showing BLK • B16 and 1.5BLK • C1 G connected to a terminal.

G148b
