Electrical 13 – Instrument panelComponents and Connectors
The instrument panel is supplied by battery voltage through fuse F15 (10A) in fusebox G1. The connection is made at pin 2 of connector E of the instrument panel C10.
Instrument panel C10 is grounded via the cable coming out of pin 4 of connector E towards ground G148b

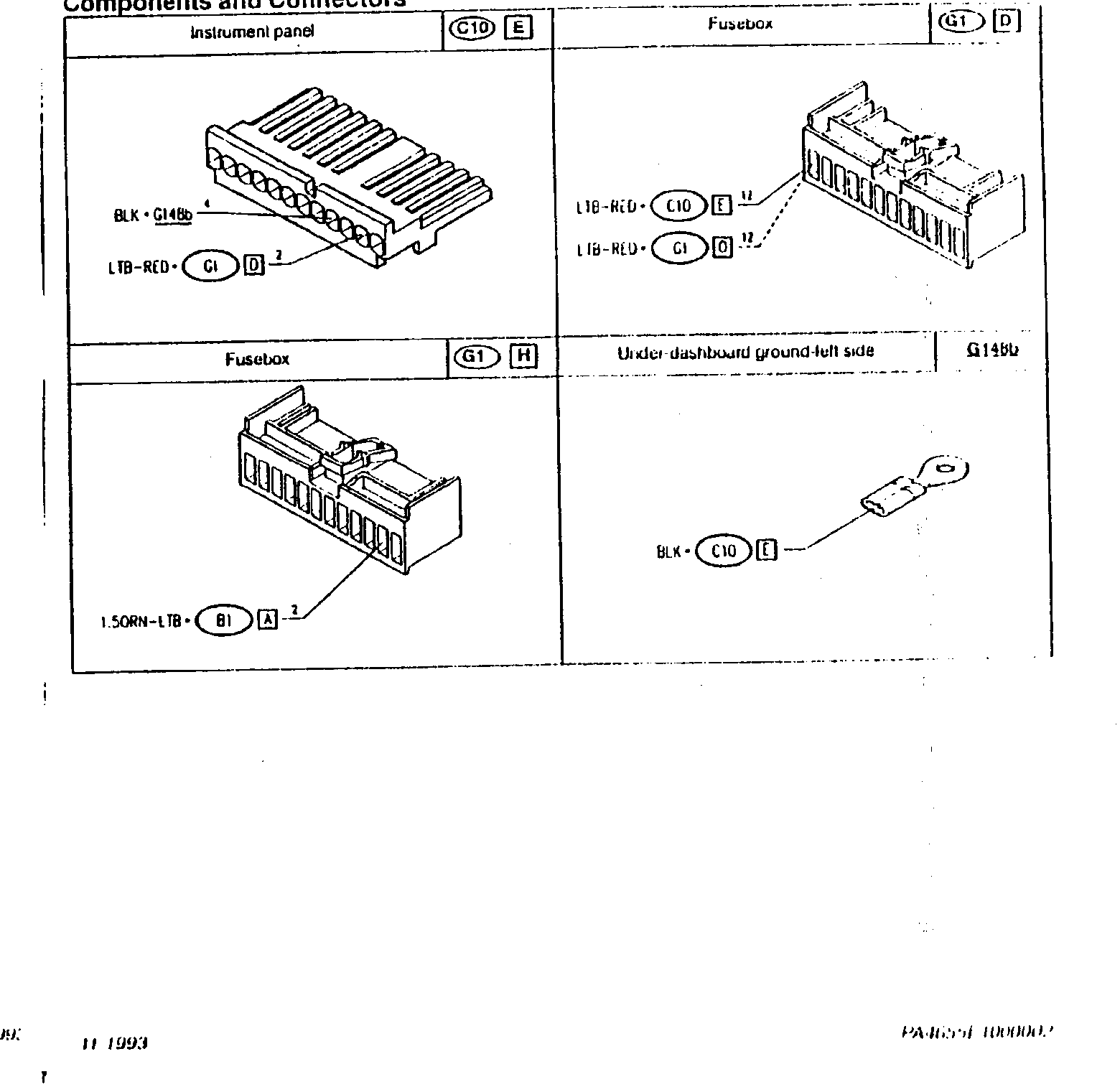

Components and Connectors
Instrument panel
| C10 | E | ||
|---|---|---|---|
| BLK • G148b | 4 | ||
| LTB-RED • | G1 | D | 2 |
Fusebox
| G1 | H | ||
|---|---|---|---|
| 1.5ORN-LTB • | G1 | A | 2 |
Under dashboard ground-left side
| G148b | |
|---|---|
| BLK • C10 | E |
