Alfa Romeo 155 Factory Service Manual (1992-1998)26 · Electrical 14 – Check panel
26 · Electrical

Engine compartment ground-left side

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Fusebox › Engine compartment ground-left side
Electrical 14 – Check panelEngine compartment ground-left side

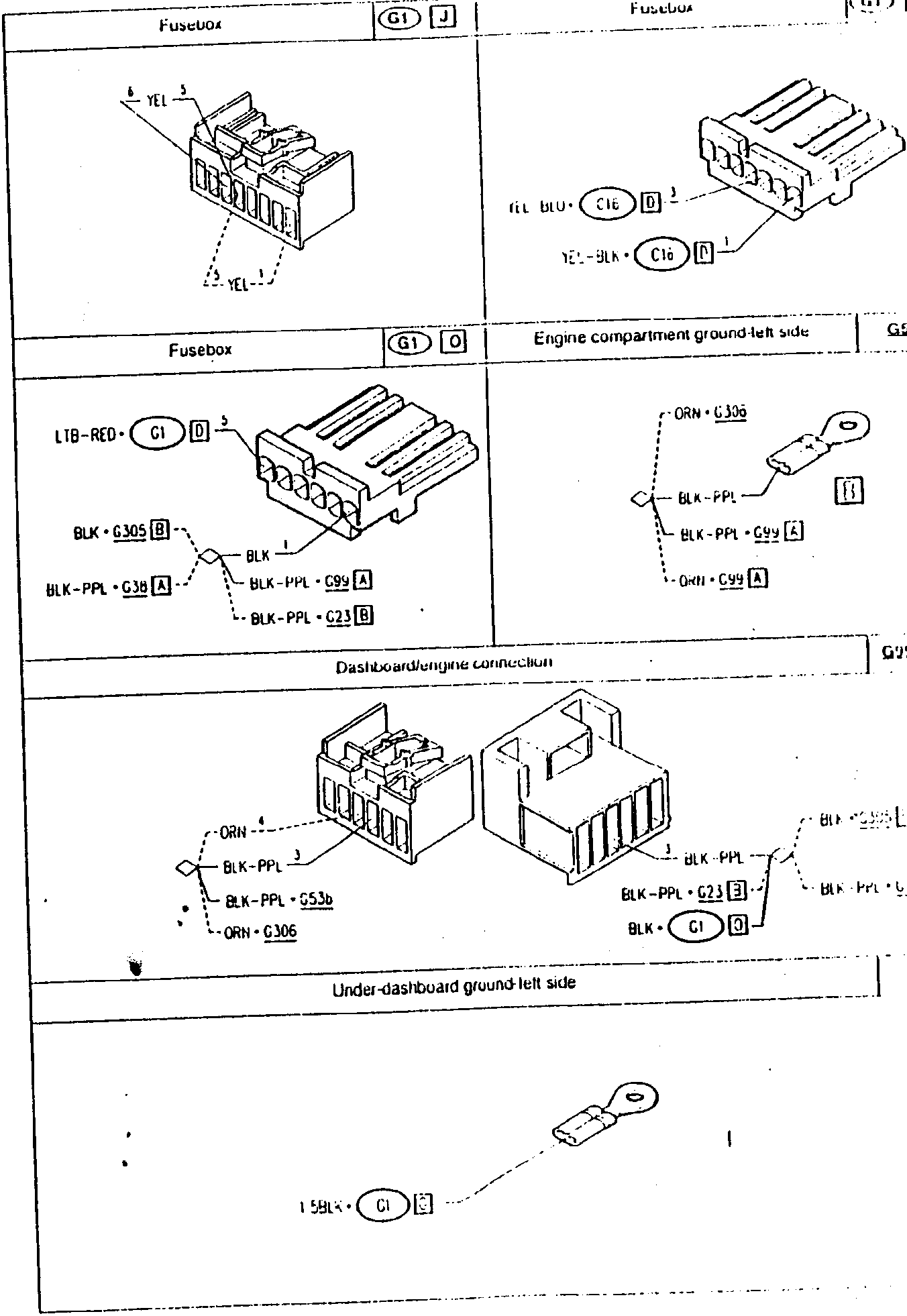

Fusebox diagram with wire connections labeled YEL-5, YEL-1, and BLU-C16, YEL-BLK-C16

Engine compartment ground-left side

Dashbord/engine connection

Under-dashboard ground-left side
