Alfa Romeo 155 Factory Service Manual (1992-1998)41 · Electrical 25 – Sunroof
41 · Electrical

Troubleshooting table (page 2 of 2)

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Troubleshooting table
Electrical 25 – SunroofTroubleshooting table · page 2 of 2

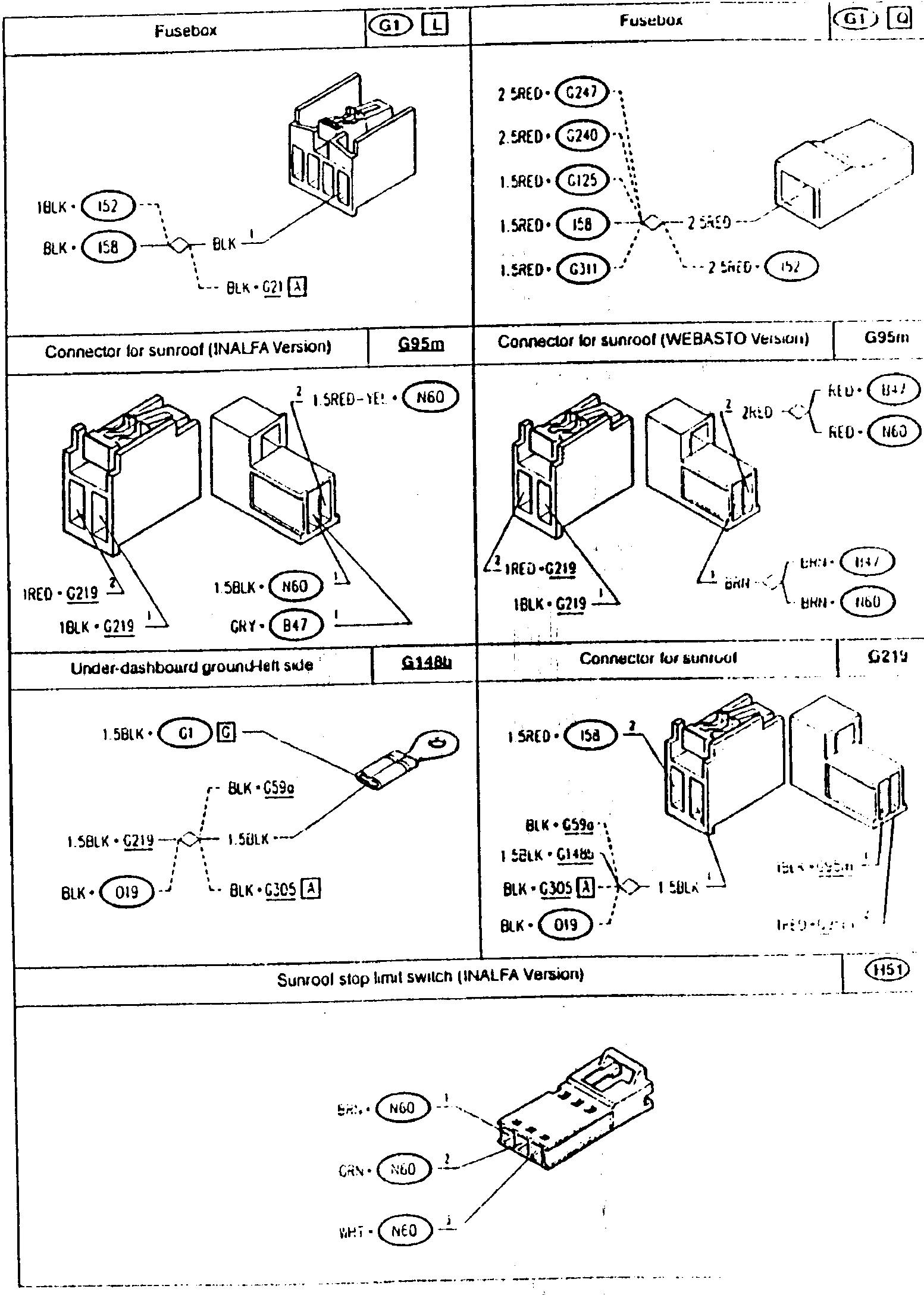

Fusebox G1 L Fusebox G1 Q
Fusebox diagram with wires labeled 1BLK·152, BLK·158, and BLK·G21 A.
G1 L
Fusebox diagram with wires labeled 2.5RED·G247, 2.5RED·G240, 1.5RED·G125, 1.5RED·158, 1.5RED·G311, and 2.5RED·152.
G1 Q
BLK·G21 A 2.5RED·152
Connector for sunroof (INALFA Version) G95m Connector for sunroof (WEBASTO Version) G95m
Connector diagram with wires labeled 1RED·G219, 1BLK·G219, 1.5BLK·N60, and GRN·B47.
G95m
Connector diagram with wires labeled 2 RED·G219, 1BLK·G219, 2RED·N60, and BLK·N60.
G95m
1.5RED-YE!·N60 2 RED·N60
Under-dashboard ground-Left side G148u Connector for sunroof G219
Under-dashboard ground diagram with wires labeled 1.5BLK·G1 G, BLK·G59a, 1.5BLK·G219, BLK·019, and BLK·G305 A.
G148u
Connector for sunroof diagram with wires labeled 1.5RED·158, BLK·G59a, 1.5BLK·G148u, BLK·G305 A, and BLK·019.
G219
BLK·G305 A BLK·019
Sunroof stop limit switch (INALFA Version) H51
Sunroof stop limit switch diagram with wires labeled BRN·N60, GRN·N60, and WHI·N60.
H51
