Functional Description
Information regarding air temperature at various points of the system is sent to the control unit Q21a by four sensors. The outside air temperature sensor Q24 sends a signal which is proportional to to the temperature at pin 8 of connector B.
The upper and lower mixed air temperature sensors, Q25a and Q25b, are connected at connector B, to pins 5 and 9 respectively.
The passenger compartment temperature sensor Q33 sends the temperature signal to pin 7 of connector B: this sensor has an incorporated ventilation motor supplied by the same line which, coming from relay I35 and fuse F13 (20A) in fusebox G1, supplies the control unit Q21a. Pin 5 of connector B supplies the "return earth" for the sensors

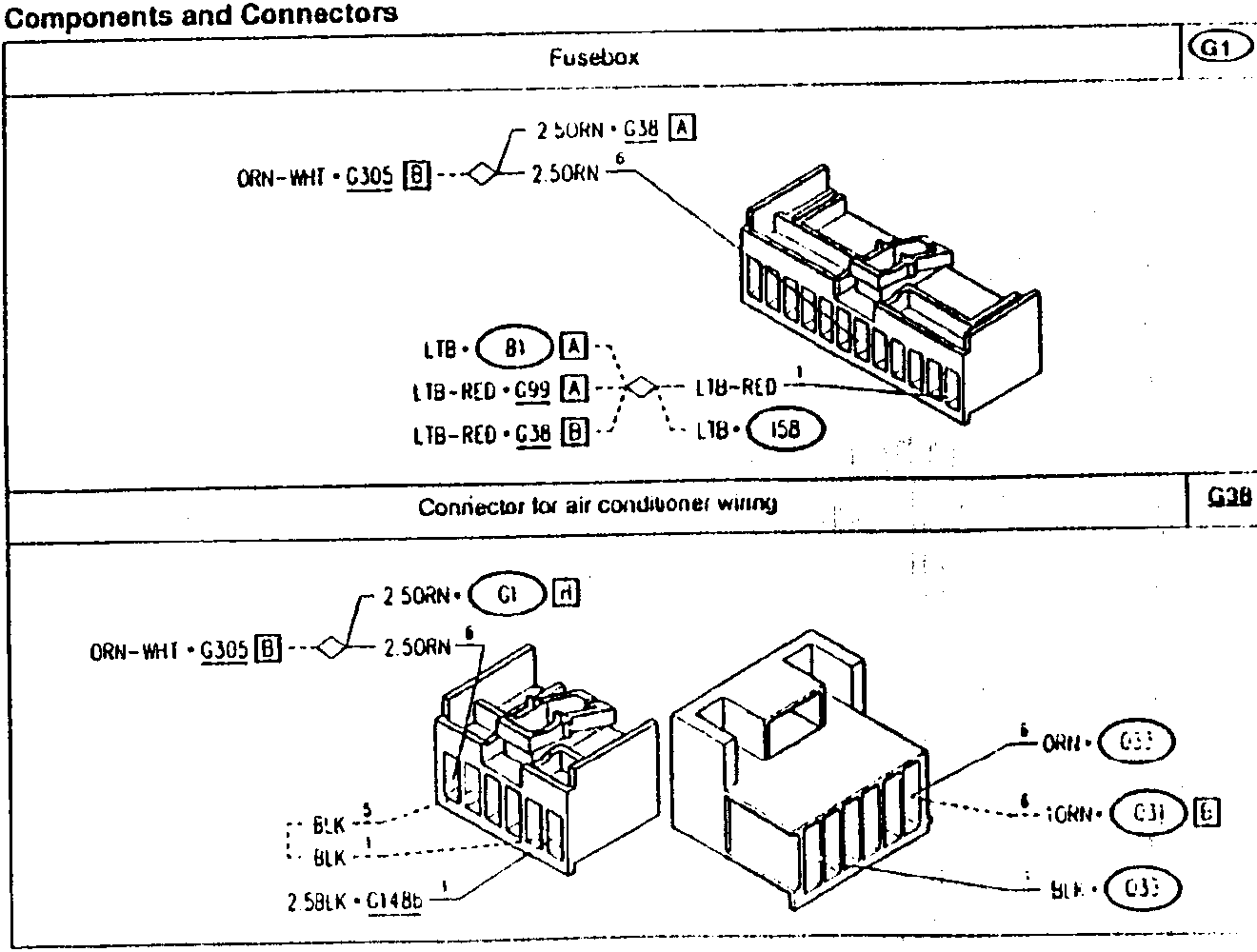

Components and Connectors
