Electrical 26 – Heating, ventilation and air conditioningFunctional Description · page 2 of 2

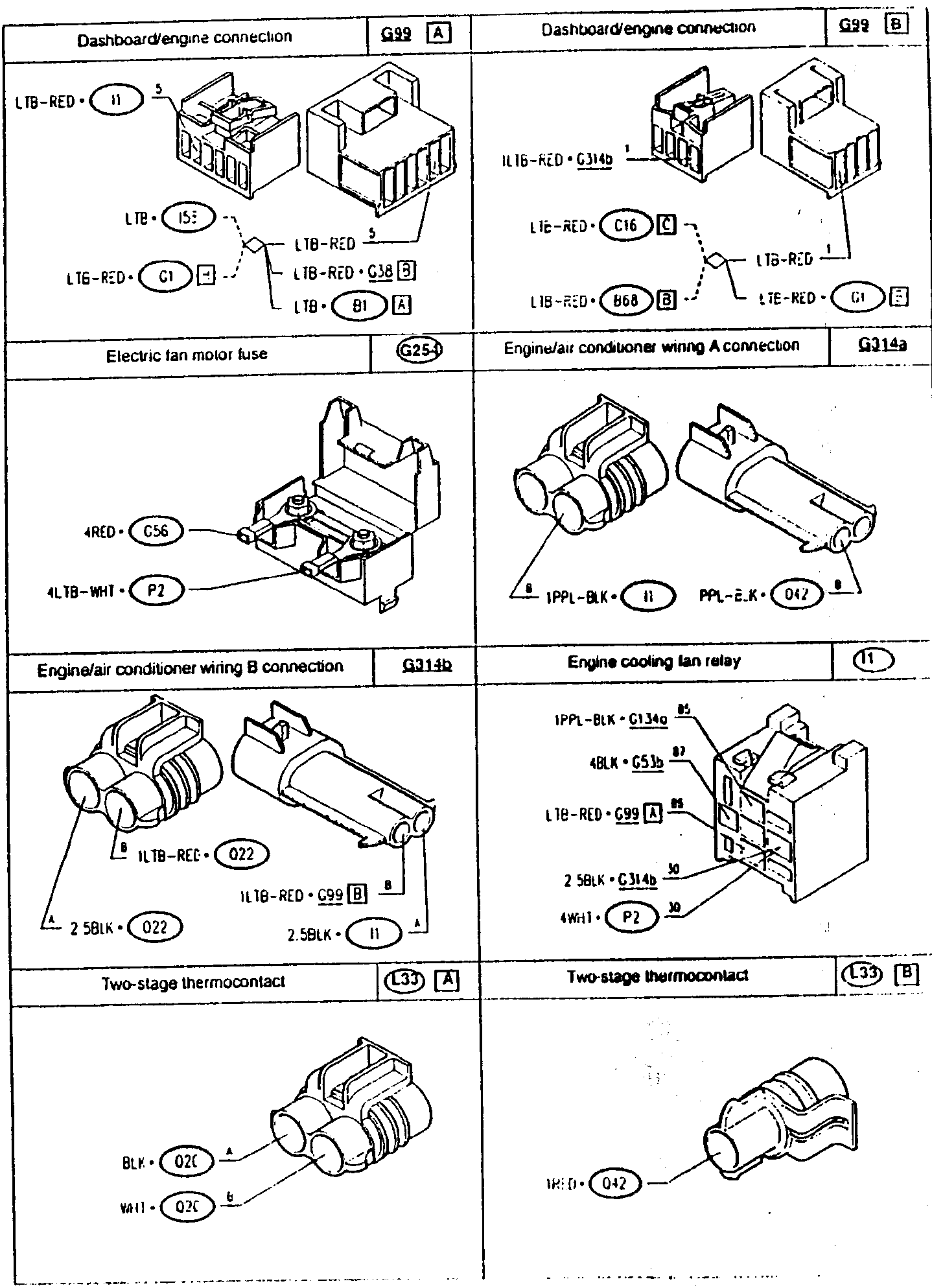

Dashboard/engine connection		G99 A	Dashboard/engine connection	G99 B
LTB-RED • 11		ILTB-RED • G314b
LTB • 15:	LTB-RED • G38 B	LIE-RED • C16 C	LTB-RED • B68 B
LTG-RED • G1	LTB-RED • G38 B	LTB-RED • B68 B	LTB-RED • G1
LTB • B1 A
Electric fan motor fuse		G254	Engine/air conditioner wiring A connection	G314a
4RED • G56		1PPL-BLK • 11
4LTB-WHT • P2		PPL-2.K • 042
Engine/air conditioner wiring B connection		G314b	Engine cooling fan relay	11
1LTB-REC • 022		1PPL-BLK • G134a
ILTB-RED • G99 B	2.5BLK • 11	4BLK • G53b	LTB-RED • G99 A
2.5BLK • 022		2.5BLK • G314b	4WHT • P2
Two-stage thermocontact		L33 A	Two-stage thermocontact	L33 B
BLK • 02C		RED • 042
WHT • 02C

42 Heating & A/C
