Electrical 29A – Alfa Romeo CODE immobiliserFunctional descrip- · page 2 of 2

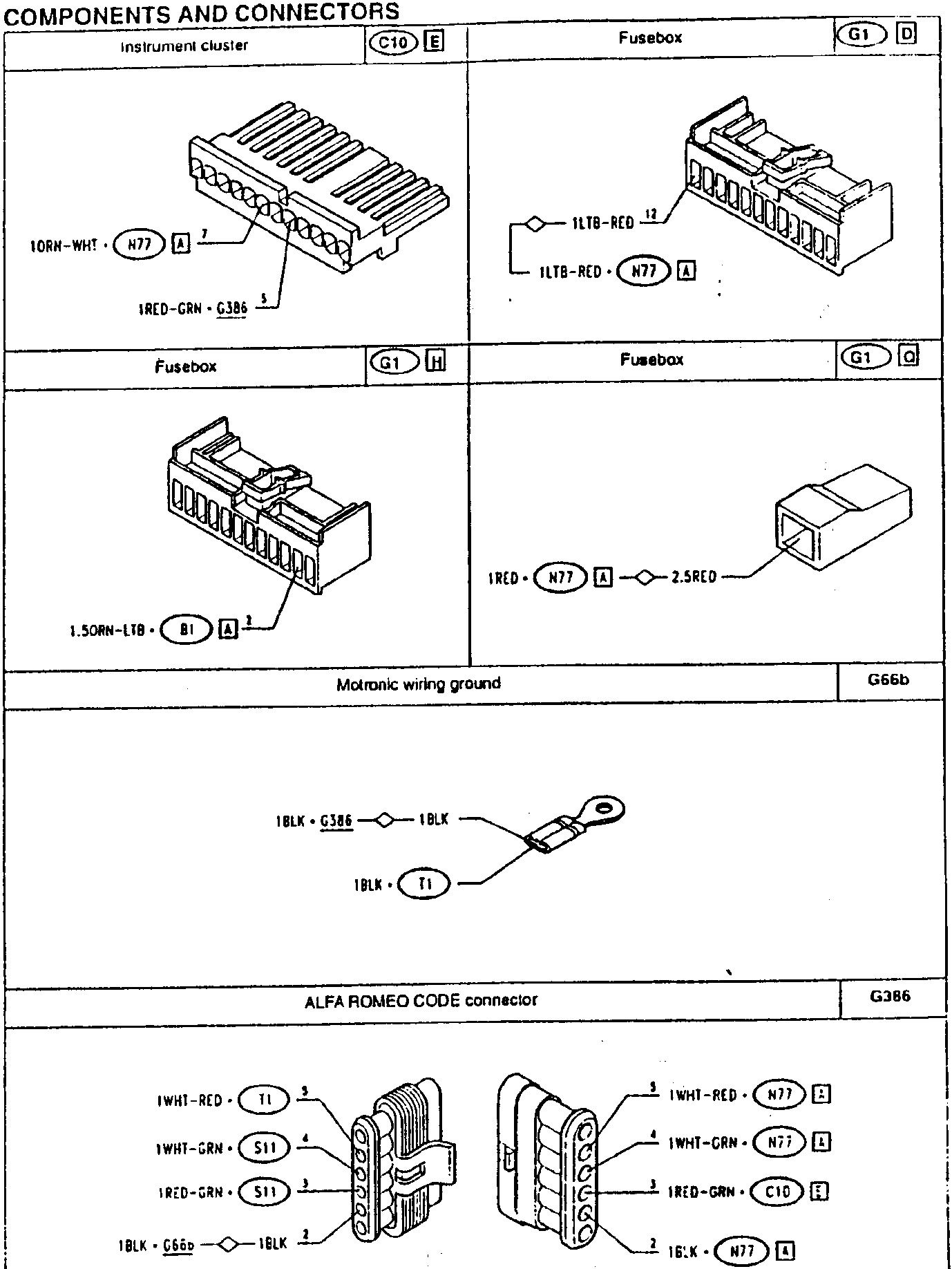

Instrument cluster	C10 E	Fusebox	G1 D
	1ORN-WHT • N77 A 7 1RED-GRN • G386 3		1LTB-RED 12 1LTB-RED • N77 A

Fusebox	G1 H	Fusebox	G1 Q
	1.5ORN-LTB • B1 A 2		1RED • N77 A — 2.5RED

Motronic wiring ground	G66b
	1BLK • G386 — 1BLK 1BLK • T1

ALFA ROMEO CODE connector	G386
	1WHT-RED • T1 3 1WHT-GRN • S11 4 1RED-GRN • S11 3 1BLK • G66b — 1BLK 2
	1WHT-RED • N77 5 1WHT-GRN • N77 4 1RED-GRN • C10 3 16.K • N77 A 2
