Removal and refitting

Removal and refitting

• Remove the seat and take it to a bench (see GROUP 66 - FRONT SEATS - COMPLETE SEAT).

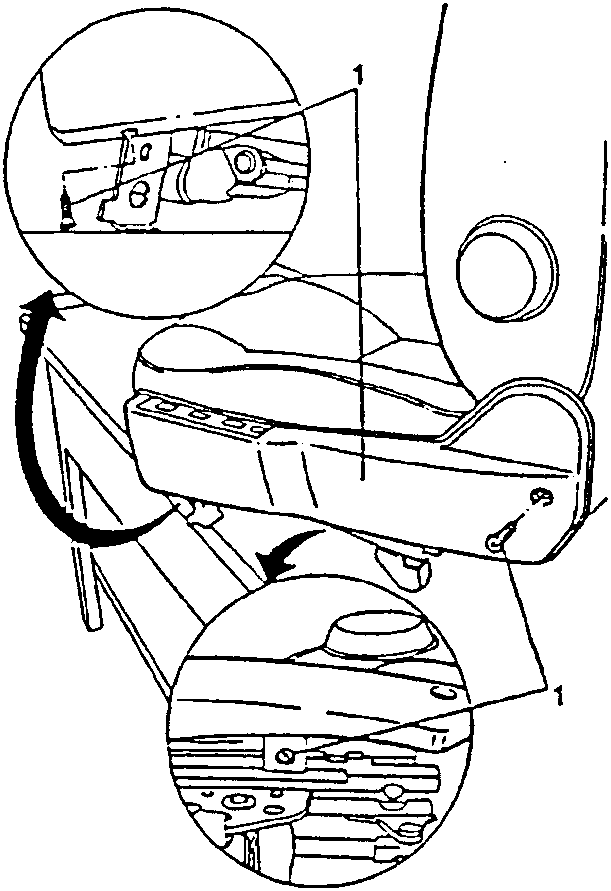

1. Loosen the three screws securing the seat moulding and remove the moulding.

WARNING: Remove the moulding with care to avoid damaging the underlying wiring.

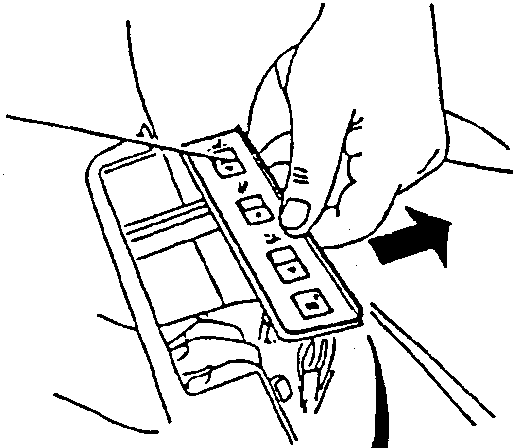

1. Slide the control panel out from it seating from one side.

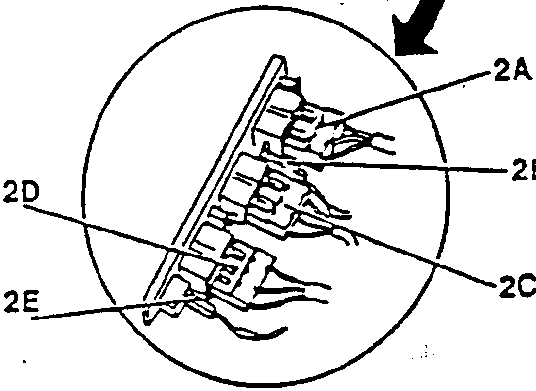

2. As necessary disconnect the connector from the longitudinal adjustment control switch (A), the control panel lighting connector (B), the seat height adjustment control switch connector (C), the backrest tilt angle control switch connector (D), the seat warming device connector (E) and remove the relative switch.

Refit by reversing the procedure followed for removal and check that the wiring is correctly connected and that the single switches are working correctly.
