SEAT HEIGHT ADJUSTMENT ELECTRIC MOTORS

Removal and refitting

  • Remove the seat and take it to a bench (see GROUP 66 - FRONT SEATS - COMPLETE SEAT).

NOTE: The operations described below are applicable for each motor regardless of the intervention sequence.

  1. Disconnect the sliding device return spring from the rear bar.
  2. Cut the plastic clamp holding the wiring in place.
Diagram showing disconnection of sliding device return spring and cutting plastic clamp holding wiring.
  1. Loosen the nut securing the motor retaining clamp.
  2. Withdraw the centering pins from the clamp and withdraw the electric motor controlling the seat height.

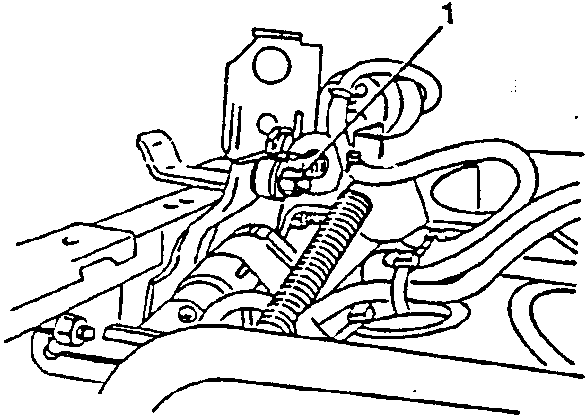

Diagram showing unscrewing the nut securing the eye at the end of the worm screw to the bracket of the sliding device.

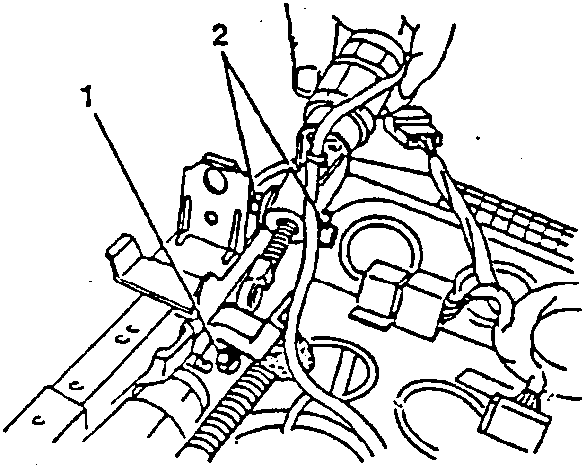

Diagram showing loosening the nut securing the motor retaining clamp and withdrawing the electric motor controlling the seat height.
