Location in engine compartment

LOCATION IN ENGINE COMPARTMENT

The fuses relevant to the following systems are located in the engine compartment:

• Ignition and injection system.
• Heating-ventilation system.
• Heating-ventilation control unit and radiator cooling fan.

INJECTION AND IGNITION SYSTEM

Depending on the model the fuses relative to the injection-ignition system are arranged as follows:

1.8 - 2.0 TS Model

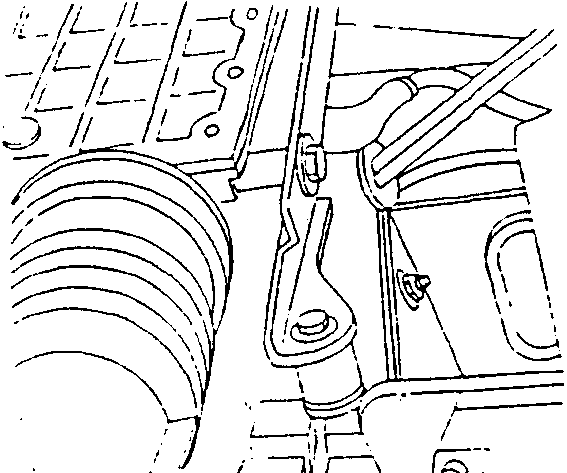

The following fuses are housed on a bracket located between the battery and the air-flow meter:

1. Fuse for control unit power supply.
2. Fuse for lambda probe (for vehicles equipped with catalytic converter).
3. Fuse for fuel pump.

2.4 V6 model

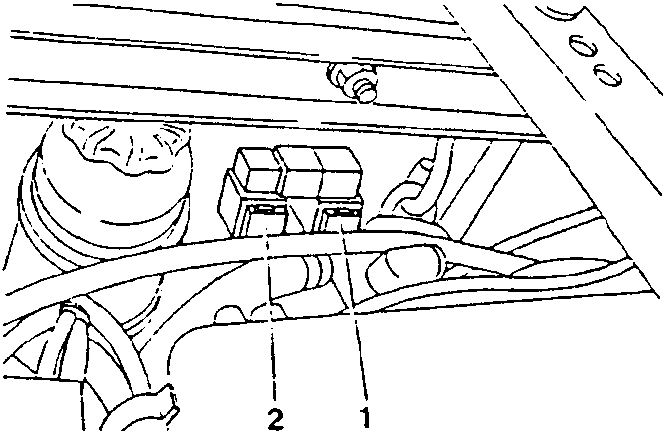

The following fuses are located in a box located on the rear wall of the engine compartment next to the tank:

1. Fuse for Lambda probe (for vehicles equipped with catalytic converter).
2. Fuse for fuel pump.

HEATING-VENTILATION SYSTEM

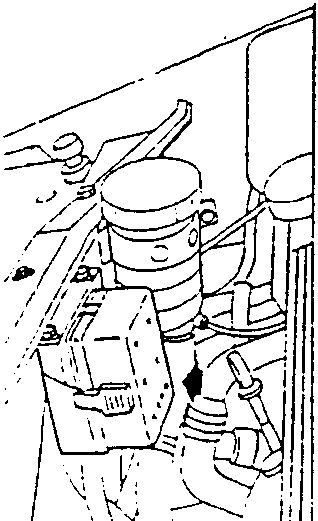

For vehicles equipped with a heating-ventilation system, the fuses relating to the specific parts are housed in a container located on the front wall of the engine compartment. To remove the cover from the container, pull on the cover at the same time as holding the two lateral tabs down.

Some electromechanical devices and timers are located in the container. For further information regarding these, refer to the relative paragraph.

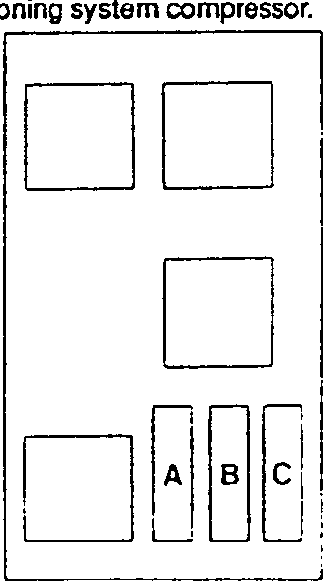

1. Fuse 30 A (blade type) for passenger compartment electric fan.
2. Fuse 40 A (blade type) for engine cooling liquid radiator electric fan (only for 2.4 V6 model).
3. Fuse 15 A for air conditioning system compressor.
