Location and access within the passenger compartment

To facilitate location these have been grouped in the following housings:

• in the passenger compartment in the main fusebox;
• in the passenger compartment, in an auxiliary fusebox;
• in the engine compartment.

LOCATION AND ACCESS WITHIN THE PASSENGER COMPARTMENT

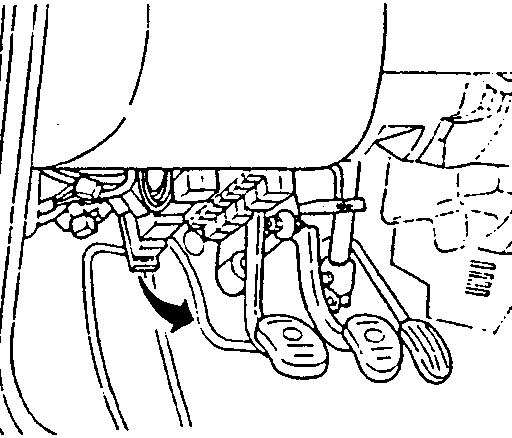

The fuses pertaining to the main devices are arranged in the main fusebox which is located under the dashboard to the left of the steering column.

To gain access to the fusebox, pull the lever marked "FUSE" downwards so that the fusebox can easily be reached.

The fuses pertaining to the devices fitted as optionals are contained within an auxiliary fusebox located under the dashboard to the left of the main fusebox.

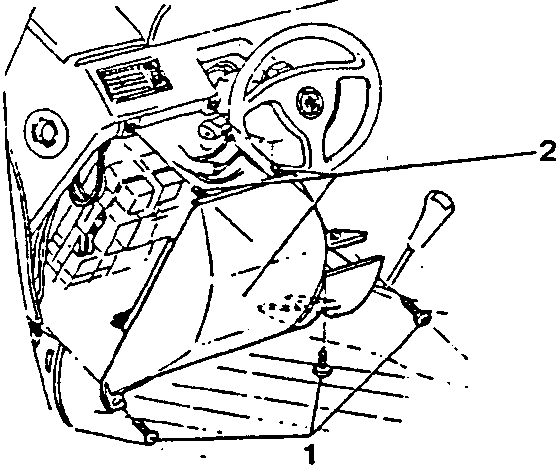

To gain access it is necessary to remove the cover as follows:

1. Loosen the three screws securing the cover to the stanchion.
2. Datach the buttons and remove the cover by freeing it from the clips.

Before refitting the cover ensure that the anti-friction pads have been correctly fitted in order to prevent squeaking.
