HORNs AND CONTROLLED DAMPING SUSPENSION SYSTEM CONTROL PANEL › Removal
Electrical systemRemoval

Removal

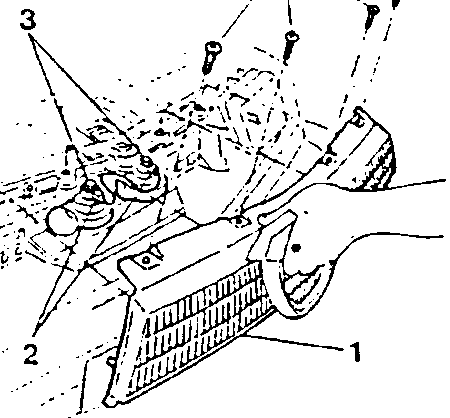

  1. Loosen the four screws securing the grill to the body and remove the grill.
  2. Disconnect the two electrical connectors.
  3. Loosen the two nuts securing the horns to the engine compartment frame and remove the two horns.
Diagram showing removal of horn components with labeled parts 1 and 2.

2.9 ÷ 4.7 Nm
(0.3 ÷ 0.43 kgm)

Refitting

To refit, reverse the procedure followed for removal.

Supplementary indications for refitting

  • Tighten the nuts to the correct torque.

CONTROLLED DAMPING SUSPENSION SYSTEM CONTROL PANEL

Removal

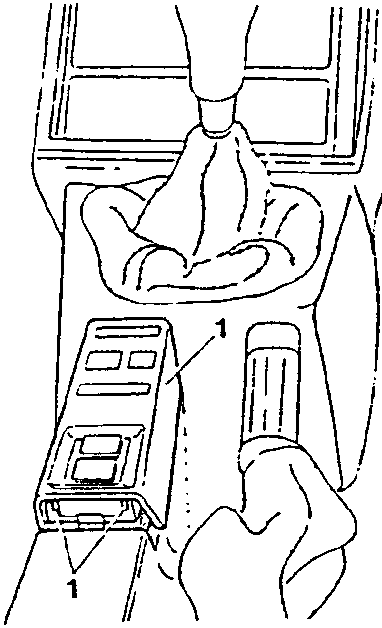

  1. With a thin-bladed screwdriver apply leverage to the edge of the moulding located on the tunnel to the left of the handbrake and remove the moulding.
Diagram showing removal of control panel moulding with labeled part 1.

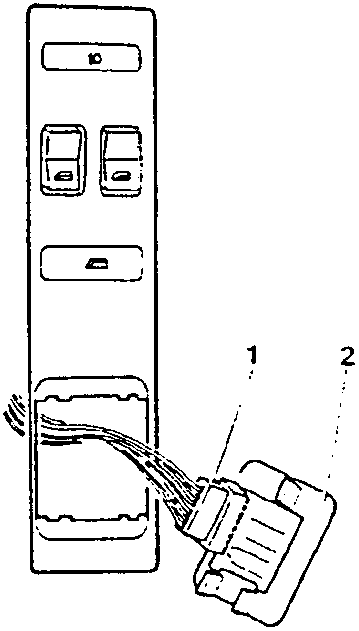

  1. Disconnect the electrical connector.
  2. Apply leverage with a screwdriver on the retaining tabs and remove the switch from the moulding.
Diagram showing electrical connector disconnection with labeled parts 1 and 2.
Diagram showing control panel switch with labeled parts 1 and 2.

Refitting

To refit, reverse the procedure followed for removal.
