Removal

Removal

• Remove the door panel (see: GROUP 55) and laterally remove the cellophane.

1. Disconnect the lock lever from the lock device.
2. Using a screwdriver as a lever withdraw the lock retaining clip.
3. Remove the lock from the outside of the door.
4. Remove the catch ring-nut from the inside of the door.

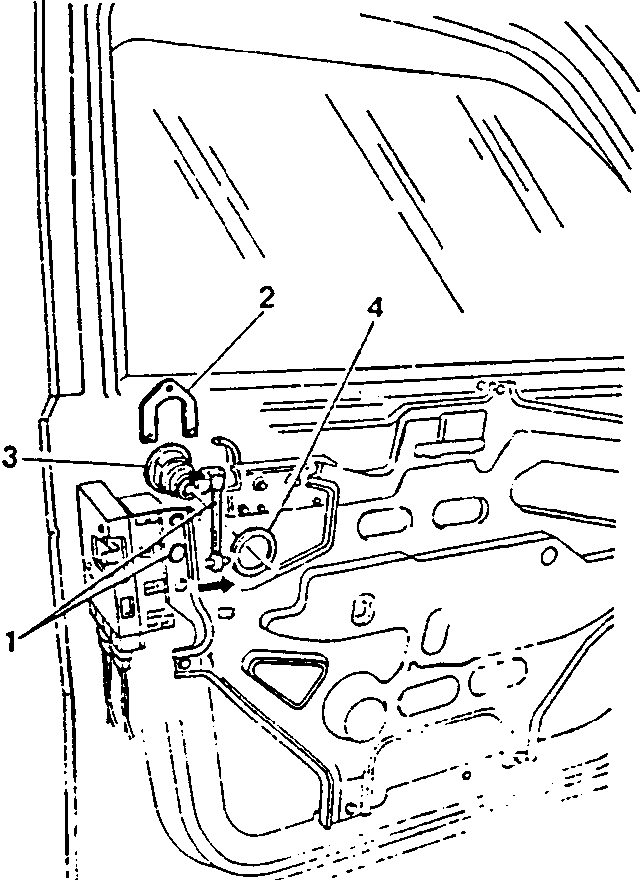

1. Lock lever
2. Lock device
3. Catch ring-nut
4. Lock retaining clip

Refitting

To refit, reverse the procedure followed for removal

Supplementary Indications for refitting

• for components and/or parts dealt with in other pages of this or other groups, refer to the relevant warnings and procedures.
