Rear power window switches

REAR POWER WINDOW SWITCHES

Removal

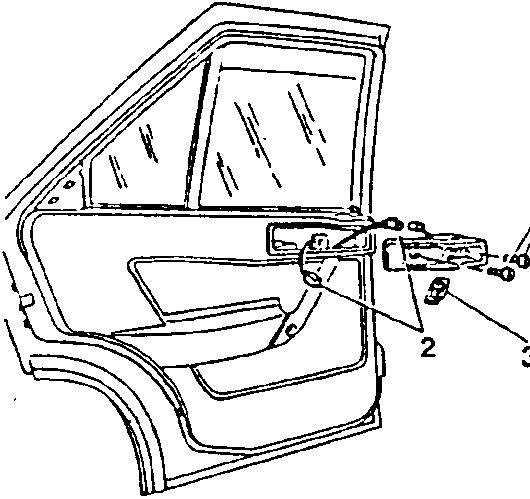

1. Remove the ashtray by withdrawing it from its seating in the door opening control lever support moulding and loosen the screws securing the moulding.
2. Disconnect the electrical connector.
3. Remove the power window switch.

1. Part 1
2. Part 2
3. Part 3

Refitting

To refit, reverse the procedure followed for removal.

REAR POWER WINDOW PERMIT SWITCH

Removal

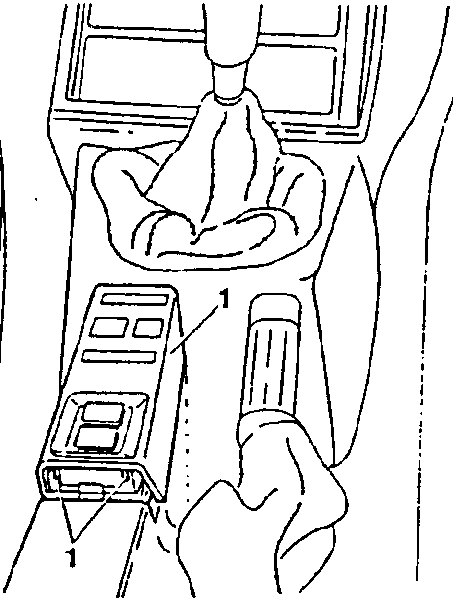

1. Using a thin-bladed screwdriver apply leverage to the edge of the moulding located on the tunnel to the left of the handbrake and remove the moulding.

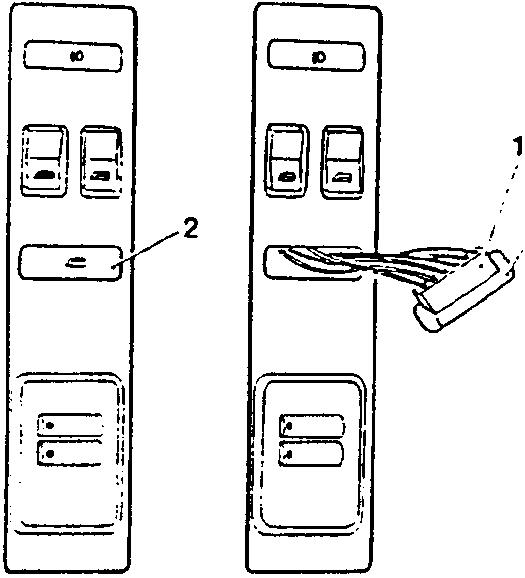

1. Disconnect the electrical connector.
2. Using a screwdriver, apply leverage to the retaining tab and remove the switch.

Refitting

To refit, reverse the procedure followed for removal.

1. Part 1
2. Part 2
