Engine cooling (Twin Spark)Disassembly

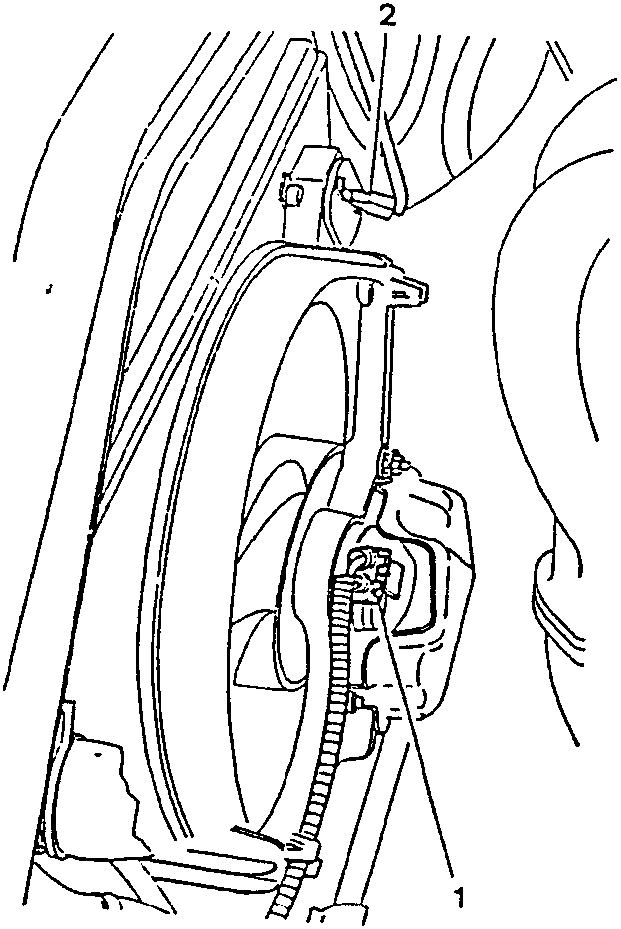

1. Disconnect the electrical connection from the fan.
2. Disconnect the electrical connection from the fan resistance.

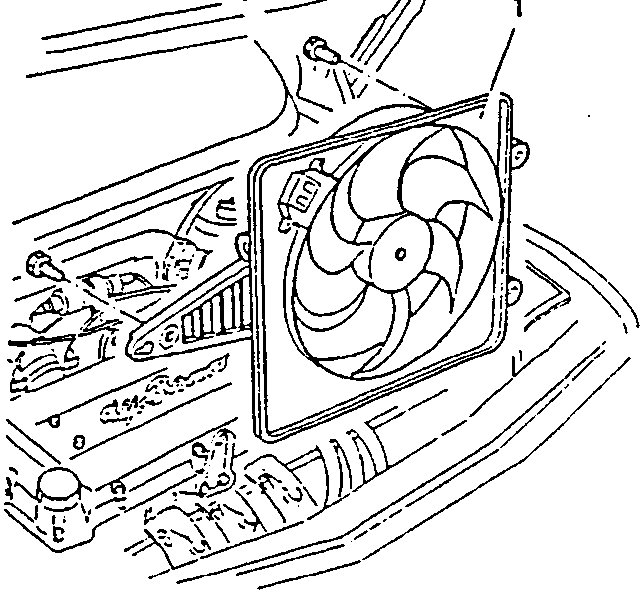

1. Unscrew the three screws and remove the complete electric cooling fan.

DISASSEMBLY

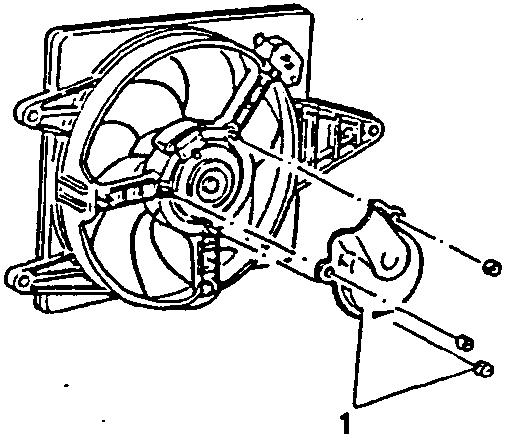

1. Unscrew the three nuts and remove the heat shielding.

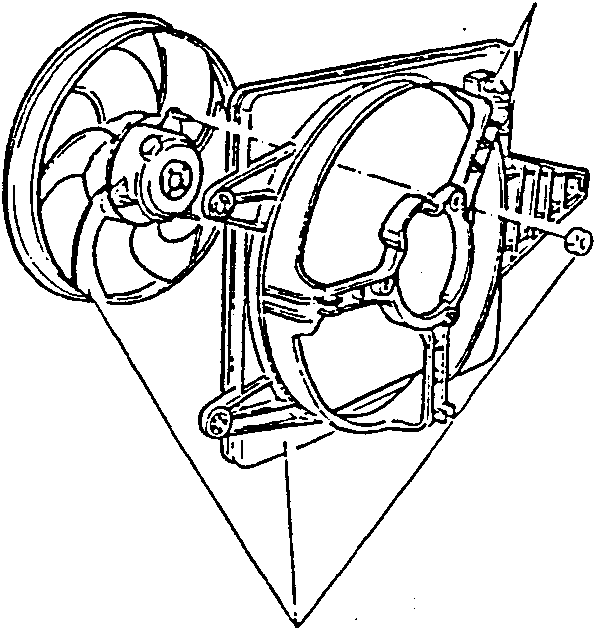

1. Unscrew the three nuts and separate the conveyor from the fan.
2. Unscrew the two screws and remove the electric fan resistance.
