Removal/refitting (page 2 of 2)

Make

Alfa Romeo

Model

155 Factory Service Manual

Year

1992–1998

Section

Thermostat unit

Engine cooling (V6)Removal/refitting · page 2 of 2

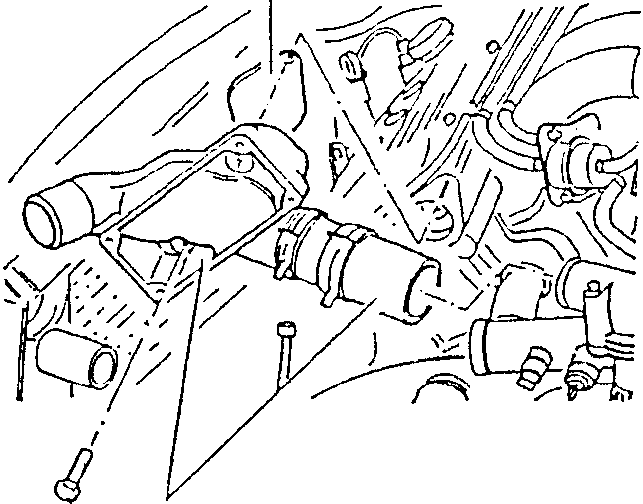

1. Remove the ignition coil support together with the sleeve connecting it to the thermostatic cup.
2. Remove the gasket.

13.6 ÷ 16.8 Nm
1.4 ÷ 1.7 kgm

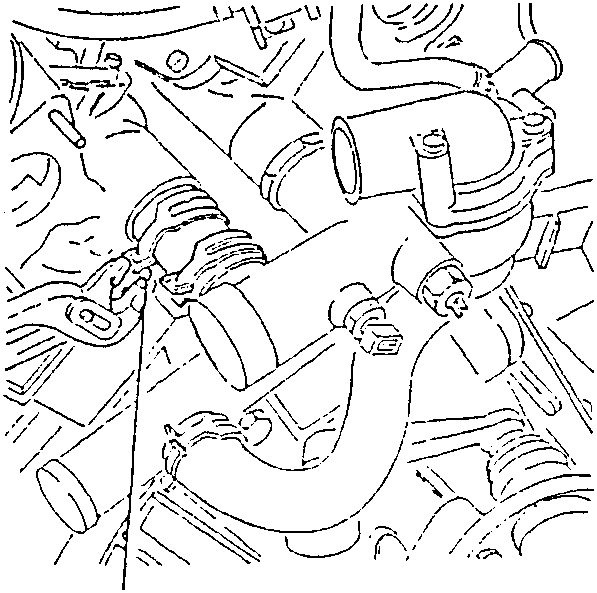

1. Disconnect the sleeve connecting the thermostatic cup and the left-hand cylinder head.

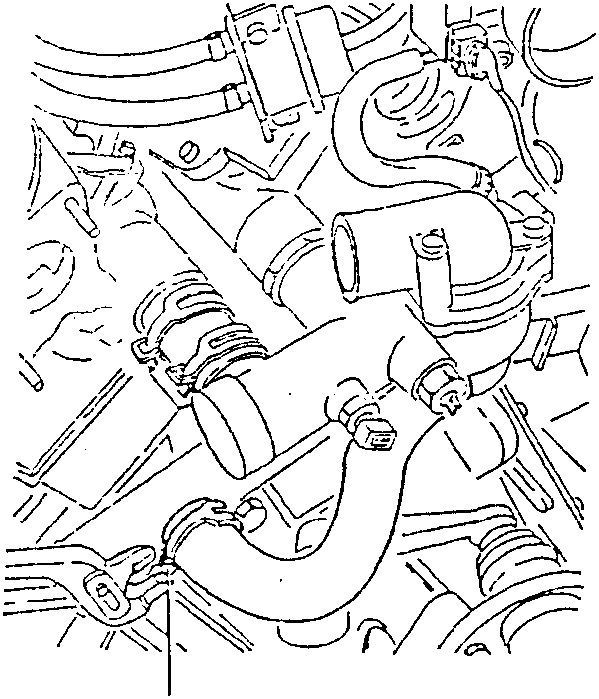

1. Disconnect the engine coolant to pump sleeve.

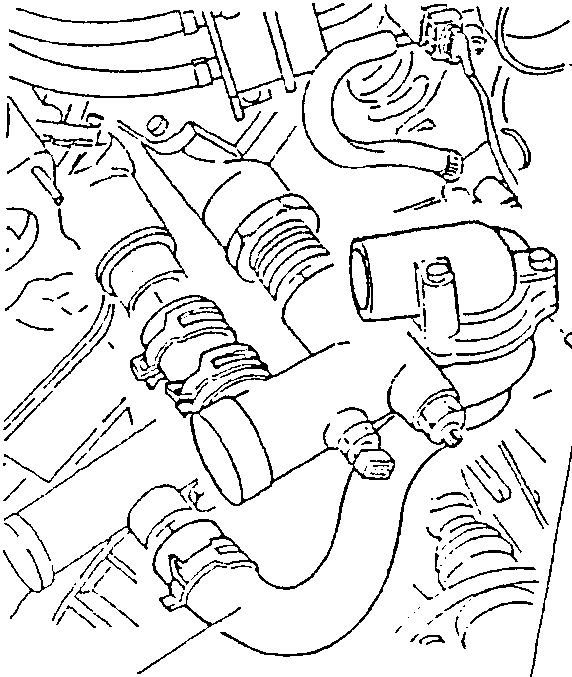

1. Remove the thermostatic unit complete with sleeves.

32.3 ÷ 39.9 Nm
3.3 ÷ 4.1 kgm

10 Engine
