Engine – mechanical (Twin Spark)Lubrication circuit

LUBRICATION CIRCUIT

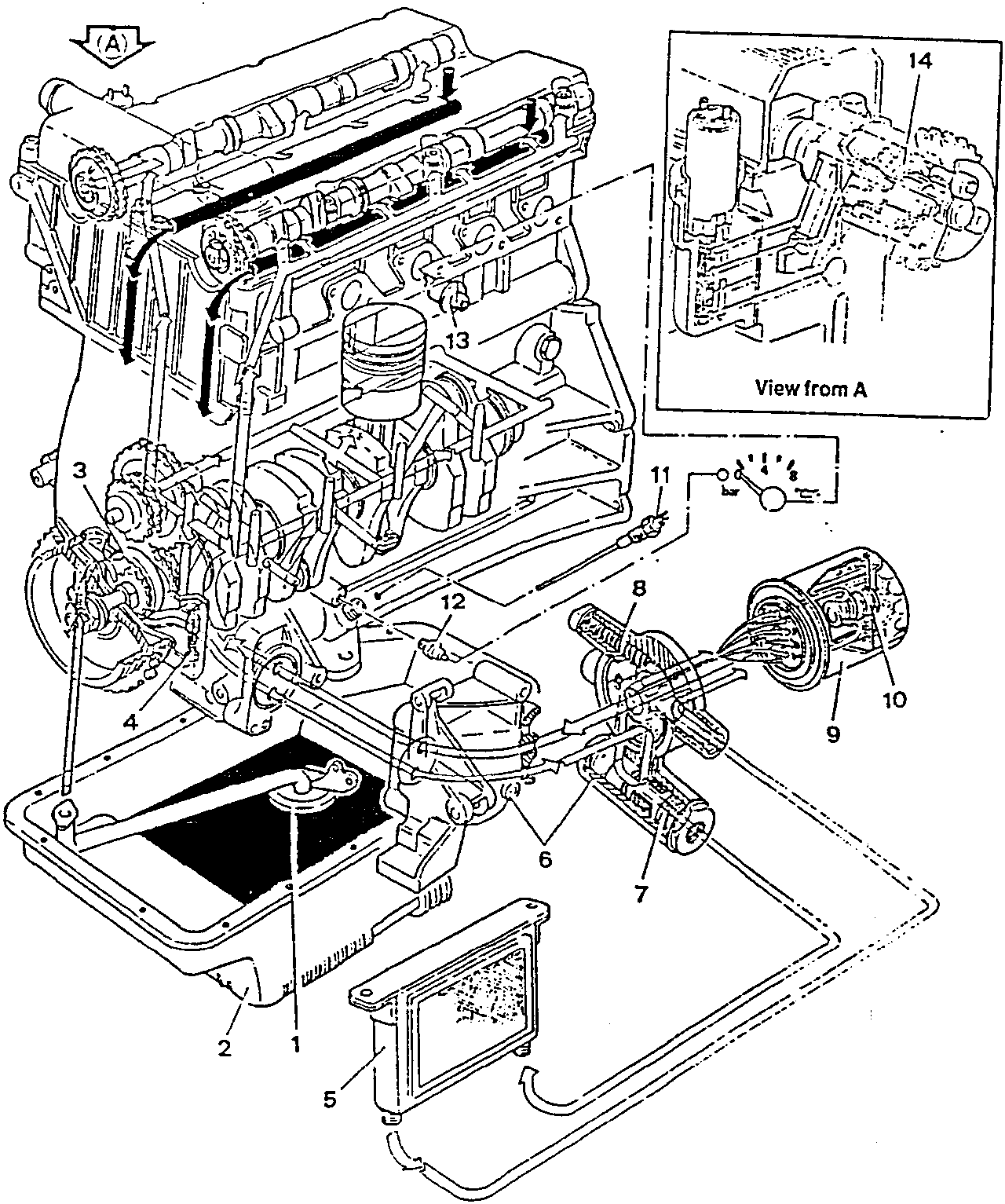

Engine main mechanical unit lubrication circuit diagram with numbered parts and inset view from A
View from A
  1. Suction device
  2. Oil sump
  3. Oil pump
  4. Pressure relief valve
  5. Oil radiator
  6. Oil filter support
  7. Thermostat valve
  8. Oil pressure relief valve
  9. Oil filter
  10. By-pass valve
  11. Minimum oil level sensor
  12. Minimum engine oil pressure warning light sensor
  13. Engine oil pressure sender
  14. Timing variator
