Removal/refitting of oil sump

The preceding chapter described and illustrated the complete engine bench overhaul.

Some of these operations can be carried out with the engine installed without necessitating its removal from the engine compartment.

Among the most frequent operations, it is possible to remove and refit the oil sump and engine pulley by following the indications given below.

NOTE: Refer to GROUP 00 for the most frequent maintenance operations carried out with the engine installed on the vehicle.

REMOVAL/REFITTING OF OIL SUMP

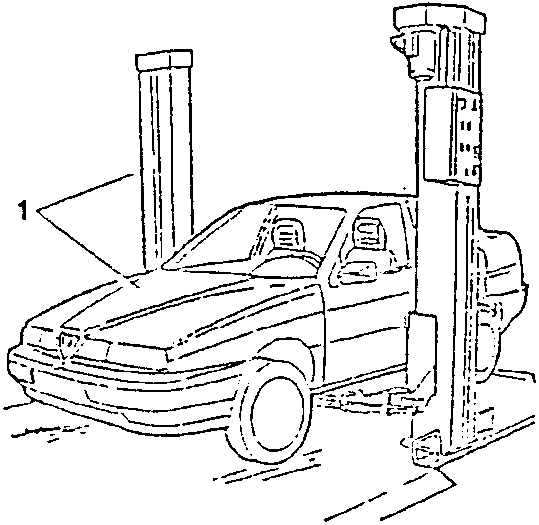

1. Place the vehicle on a lift.

1. 1

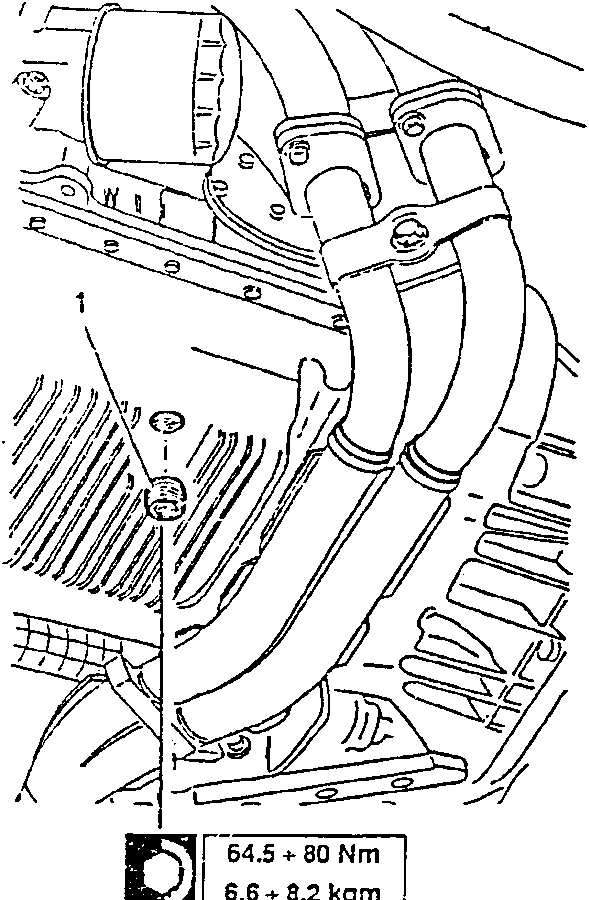

1. Drain off the engine oil by unscrewing the cap on the oil sump.

64.5 ÷ 80 Nm
6.6 ÷ 8.2 kgm

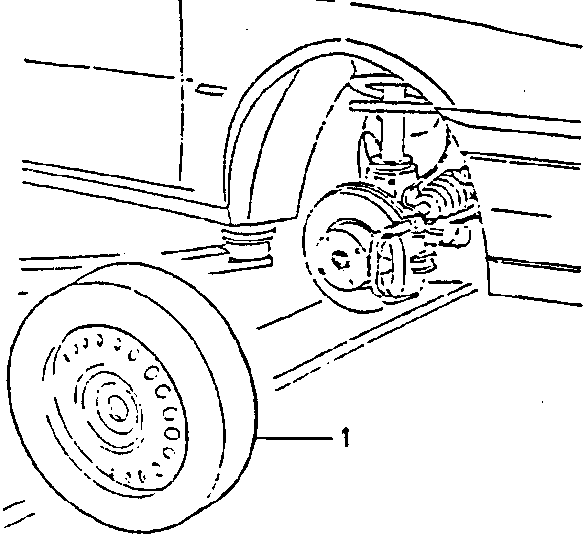

1. Remove the front right-hand wheel.

1. 1
