Engine – mechanical (V6)Removal of compressor

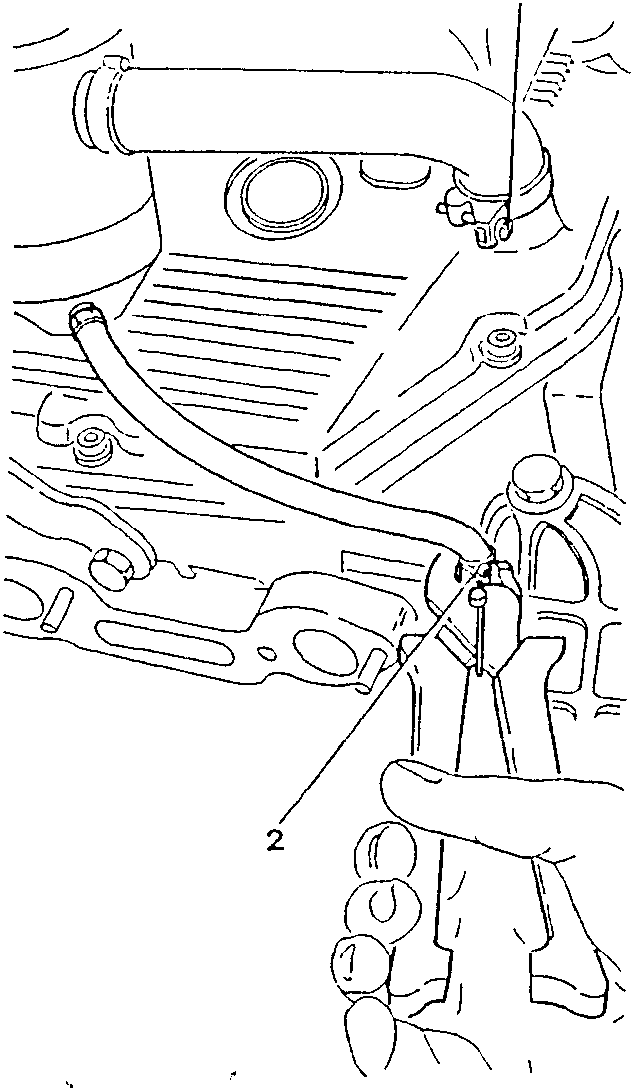

  1. After loosening the clamp securing the oil vapour recirculation pipe, disconnect it from the cylinder head.
  2. Loosen the clamp on the oil recirculation pipe and disconnect it from the engine block.
Diagram showing hand using tool to disconnect a pipe from an engine block, with numbered parts 1 and 2

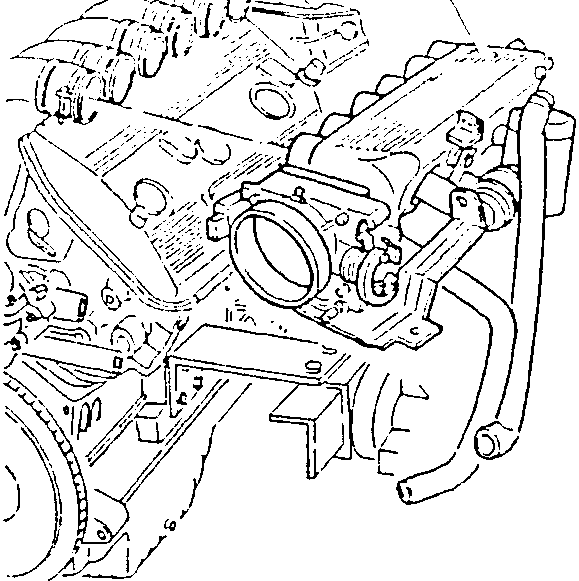

  1. Remove the air intake box complete with oil vapour separator, engine idle speed actuator and throttle body.
Diagram of engine showing cylinder head and associated components, with numbered part 1

REMOVAL OF COMPRESSOR

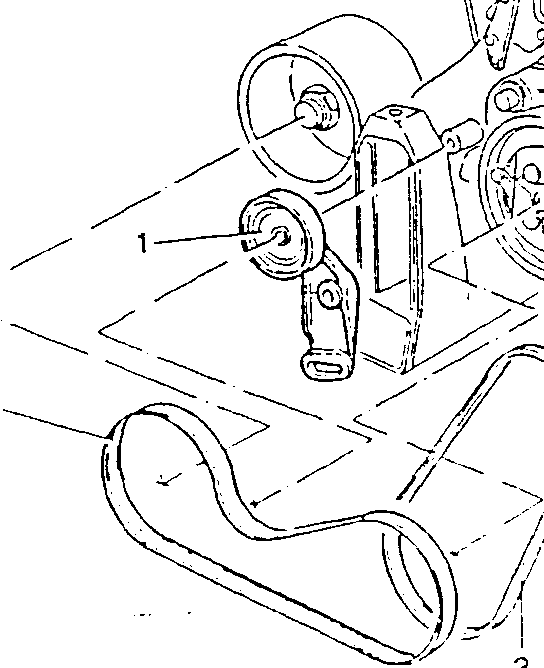

  1. Remove the compressor belt stretcher.
  2. Remove the compressor drive belt.
  3. Remove the power steering drive belt.
Diagram showing compressor components with numbered parts 1, 2 and 3
