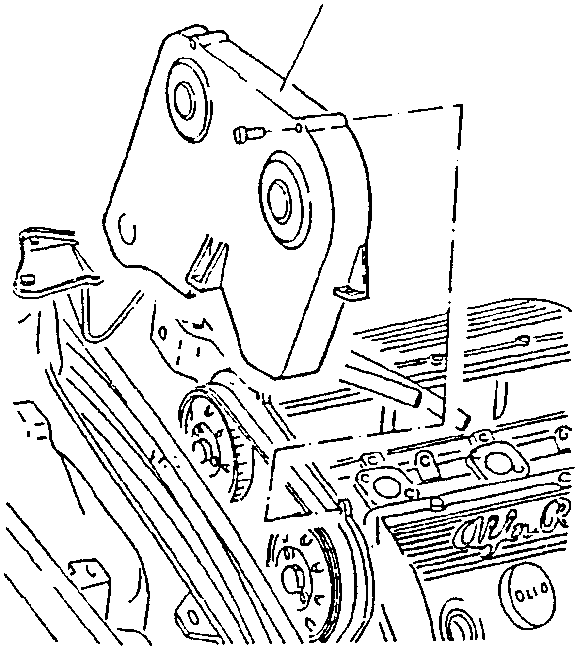

1. Remove the timing belt front cover.

• Remove the relay box bracket plastic protection.

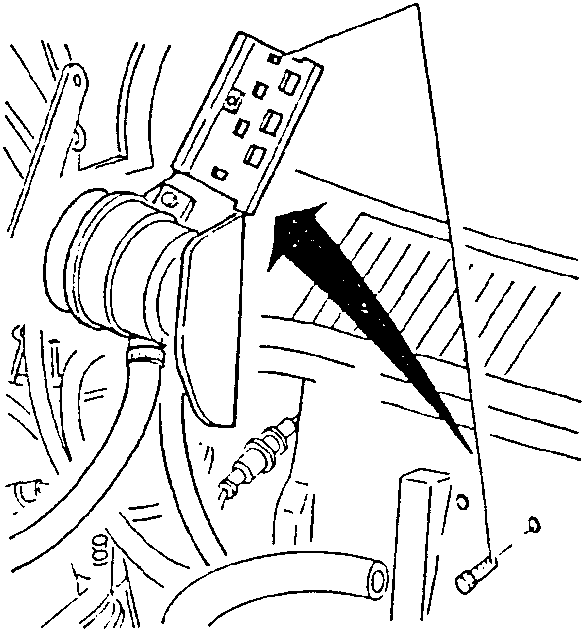

1. Unscrew the two screws securing the relay box bracket and power steering fluid reservoir support and move these to one side after disconnecting the relays from the support bracket.

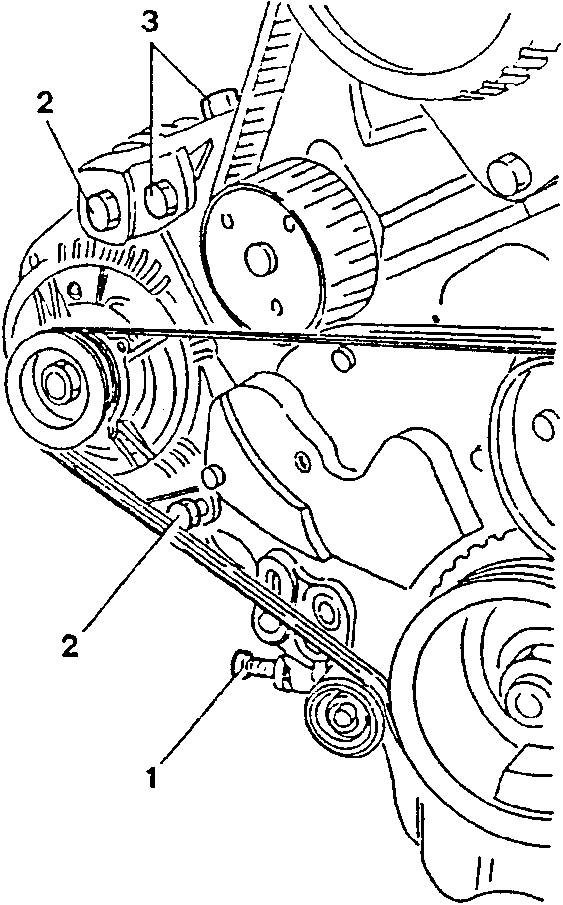

1. Slacken the tension of the alternator drive belt by acting on the micrometric adjustment screws.
2. Loosen the bolts securing the alternator.

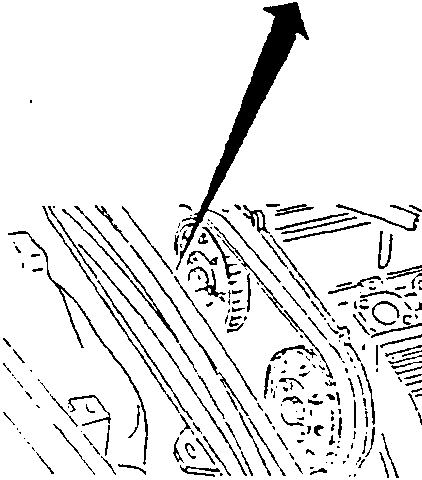

3. Unscrew the bolt and screw securing the upper alternator support to the right cylinder head.
