Engine – mechanical (V6)Removal of cylinder heads · page 2 of 2

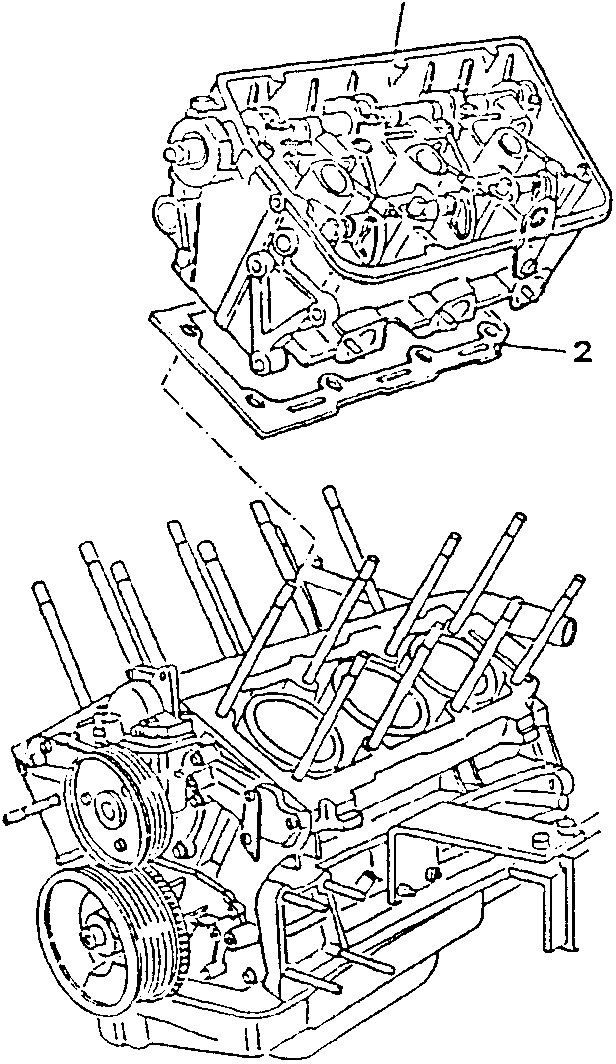

- Remove the cylinder heads.
- Remove the gaskets between the cylinder heads and engine block.

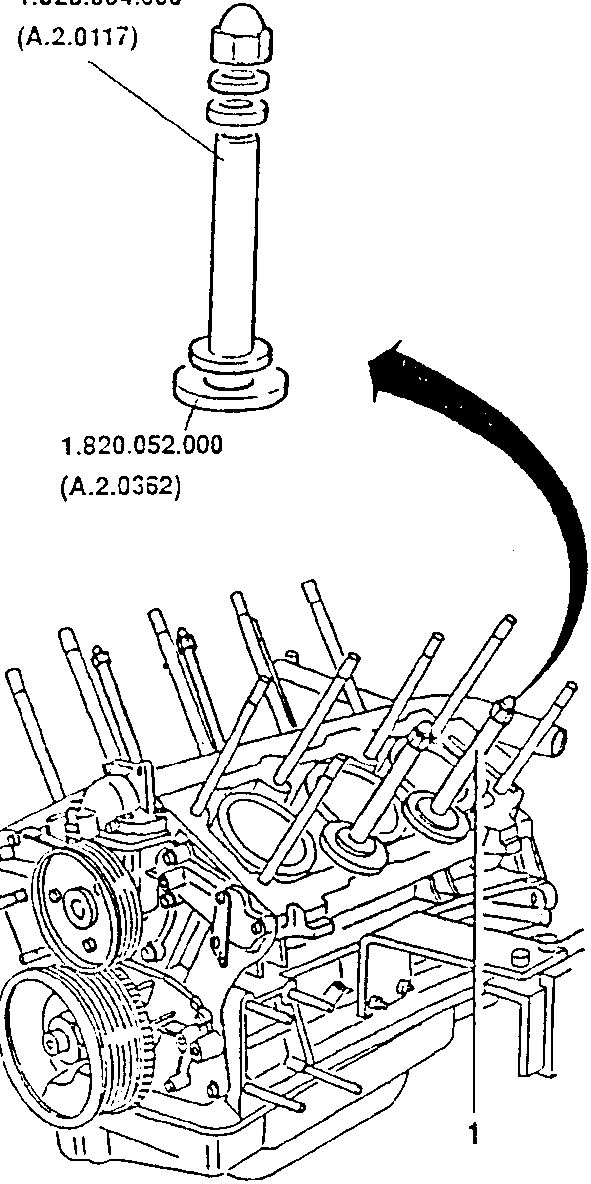

- Install the cylinder liner retainers N° 1.820.004.000 (A.2.0117) and relative washers N° 1.820.052.000 (A.2.0362).
See relevant paragraph for installation of cylinder heads.
