Alfa Romeo 155 Factory Service Manual (1992-1998)07 · Engine – mechanical (V6)
07 · Engine

Removal of flywheel

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Removal of front cover and flywheel › Removal of flywheel
Engine – mechanical (V6)Removal of flywheel
  1. Remove the front cover.
  2. Remove the oil seal (install using inserting tool N’ 1.821.125.000/A.3.0524).
  3. Remove the gasket between the front cover and the engine block.

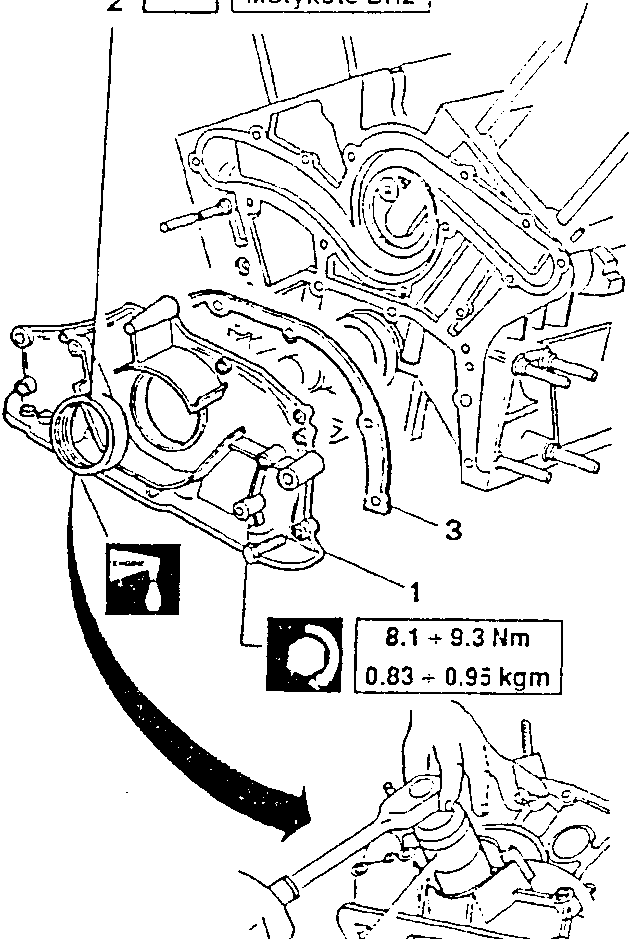

Diagram showing removal of front cover with tool 1.821.125.000 (A.3.0524) and torque specification 8.1 ÷ 9.3 Nm / 0.83 ÷ 0.95 kgm, with ISECO Molykote BR2 lubricant applied to part 2.

8.1 ÷ 9.3 Nm
0.83 ÷ 0.95 kgm

REMOVAL OF FLYWHEEL

  1. Unscrew the screws securing the flywheel to the crankshaft.
  2. Remove tool N’ 1.820.228.000.

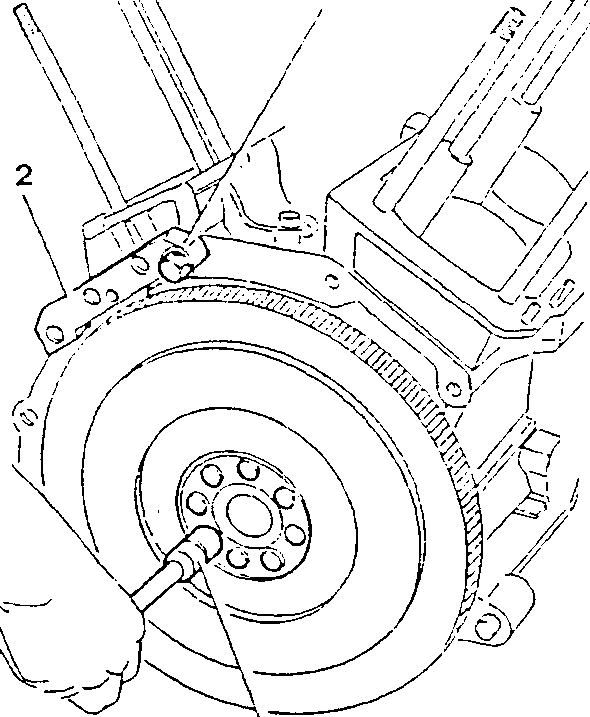

Diagram showing removal of flywheel with tool 1.820.228.000.

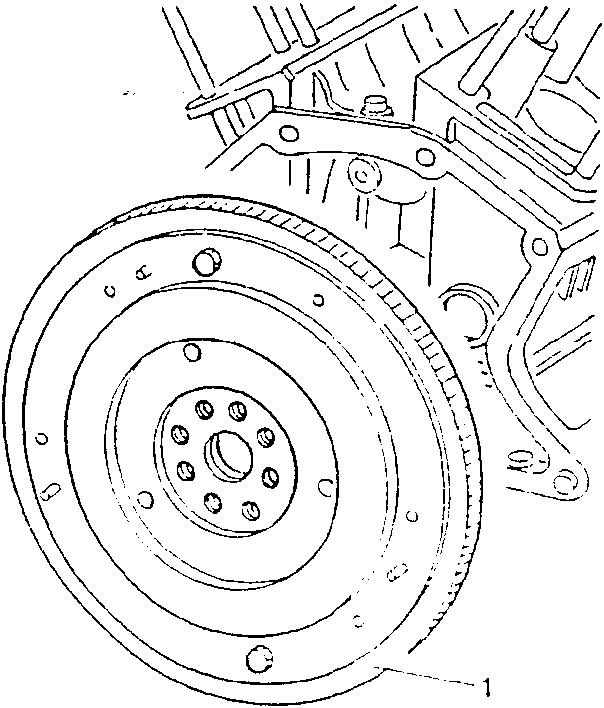

Diagram showing the flywheel removed from the engine.
