Engine – mechanical (V6)Cylinder liners
- Inspect the flywheel ring gear and, if necessary, replace it as follows:
- remove the old ring gear using a hydraulic press.
- thoroughly clean the mating surfaces of the new ring gear and of the flywheel.

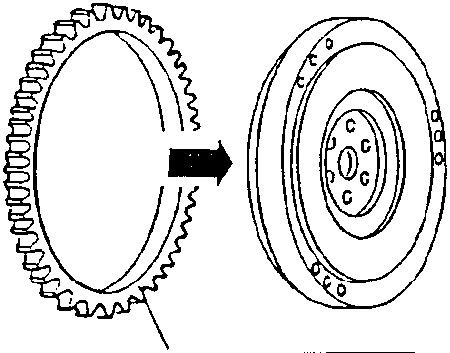

- uniformly pre-heat the new ring gear to 120 to 140°C and fit it to the engine flywheel.
- leave the parts to cool to ambient temperature: do not force the cooling of the parts.
CYLINDER LINERS
- Check the class of the cylinder liners.
NOTE: Cylinder liners are selected according to their inner diameter and are divided into three categories - A, B and C. These categories are identified by BLUE, PINK AND GREEN dots located on the outer surface.

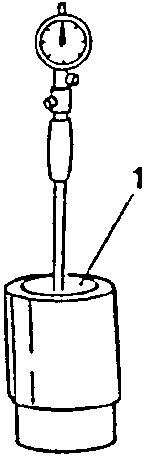

- Using a reamer applied to a centesimal dial gauge, measure the inner diameter of the cylinder liners.
- Check that the inner diameter, taper and ovalization of the cylinder liners are within the prescribed limits.
| Internal diameter "d" | |
|---|---|
| Class A (Blue) | 87.985 to 87.994 mm |
| Class B (Pink) | 87.995 to 88.004 mm |
| Class C (Green) | 88.005 to 88.014 mm |
| Maximum taper (M-N) |
|---|
| 0.01 mm |

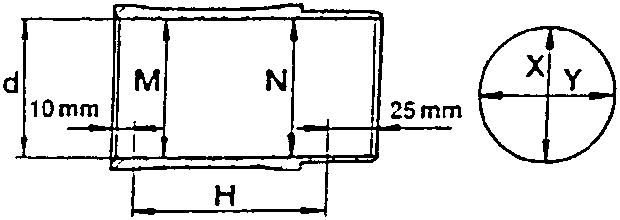

H = area for dimensional control
