Removal and refitting

REMOVAL AND REFITTING

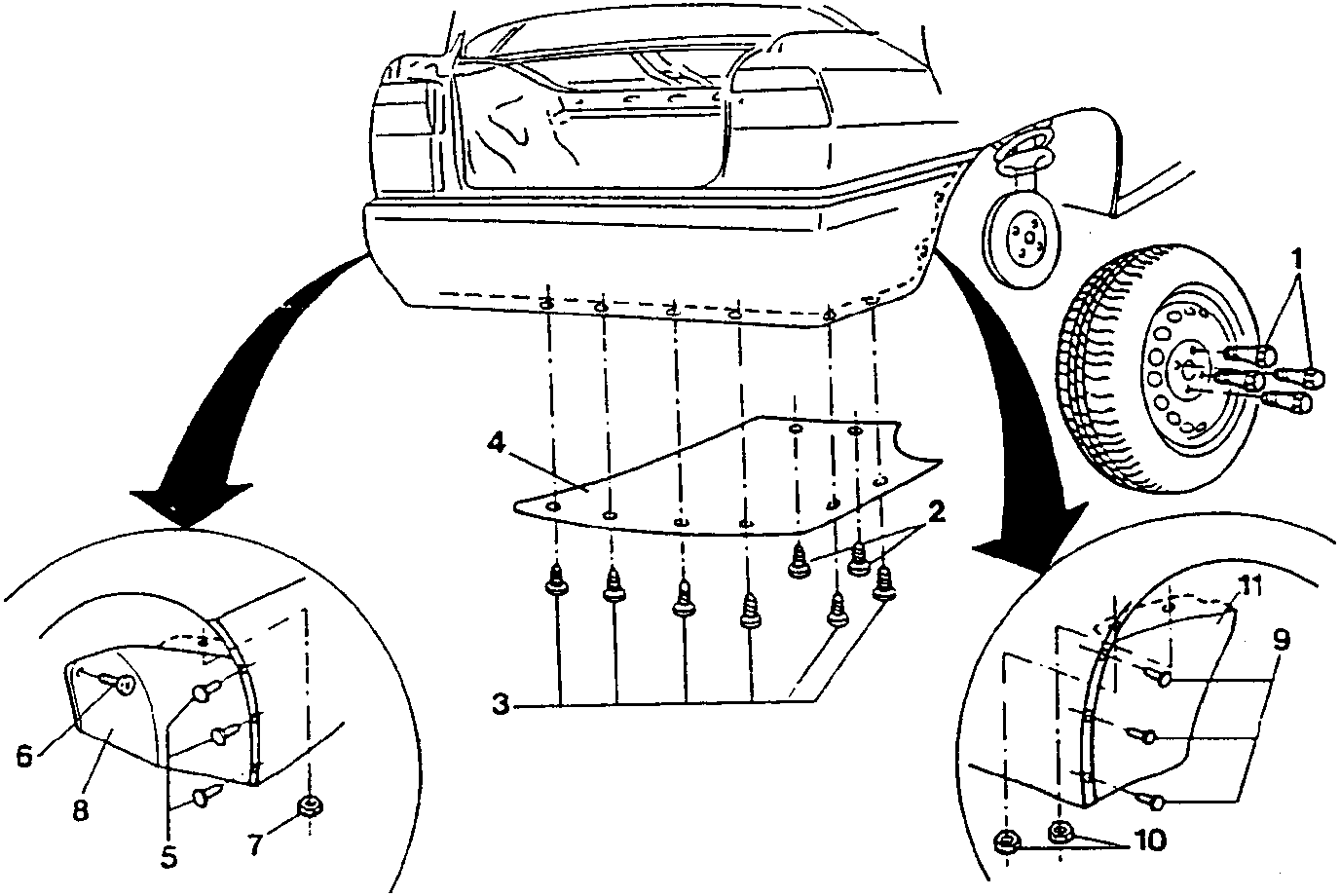

• Raise the vehicle on a lift.

1. Unscrew the four screws securing the wheel and remove it.
2. Unscrew the two screws securing the rear base plate to the fuel tank cowl.
3. Unscrew the six screws securing the rear base plate to the rear bumper.
4. Remove the base plate.

Left side of vehicle:

5. Using tool No. 1.823.006.000, detach the three buttons securing the gravel guard to the rear bumper.

Right-hand side of the vehicle:

6. Operating from the wheel housing side, unscrew the screw securing the gravel guard to the wheel housing.
7. Operating from the lower side of the vehicle, unscrew the nut securing the gravel guard to the luggage compartment platform.
8. Remove the gravel guard.

To install, reverse the procedure followed for removal.
