Removal and refitting

REMOVAL AND REFITTING

• Disconnect the negative lead (-) from the battery.
• Remove sun roof glass (see: ROOF GLASS).
• Remove the sliding blind (see: SLIDING BLIND).

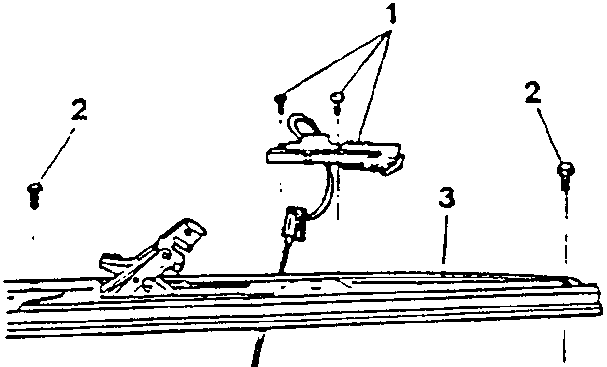

1. Unscrew the two screws securing the microswitch to the right guide and remove it by disengaging the left rack.

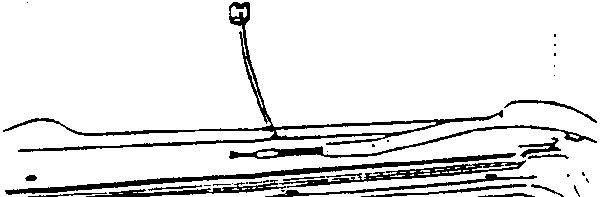

2. Unscrew the two screws securing cable clamp plate of the right side and disengage the right rack.
3. Unscrew the four screws securing the guide to the frame.
4. Withdraw the guides disengaging them from the retaining clips of the centering device located behind the frame, and take it to a bench.

On the bench:

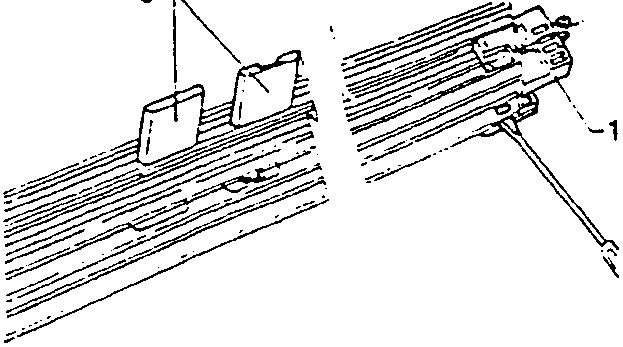

1. Using a screwdriver apply leverage on the rail and disengage the mechanical stop limit blocking the slide, situated on the end part of the guide.

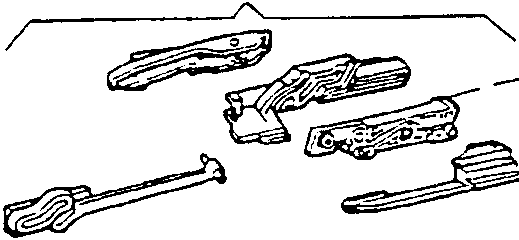

2. Withdraw the entire quarter light lever group from the guide and separate it into its component parts.
3. Withdraw the mechanical quarter light catches from the seatings.

To refit, reverse the procedures employed for removal observing the following:

• For components and/or parts dealt with in other pages of this or other groups, refer to the related procedures and indications (see: ROOF GLASS, SLIDING BLIND).
