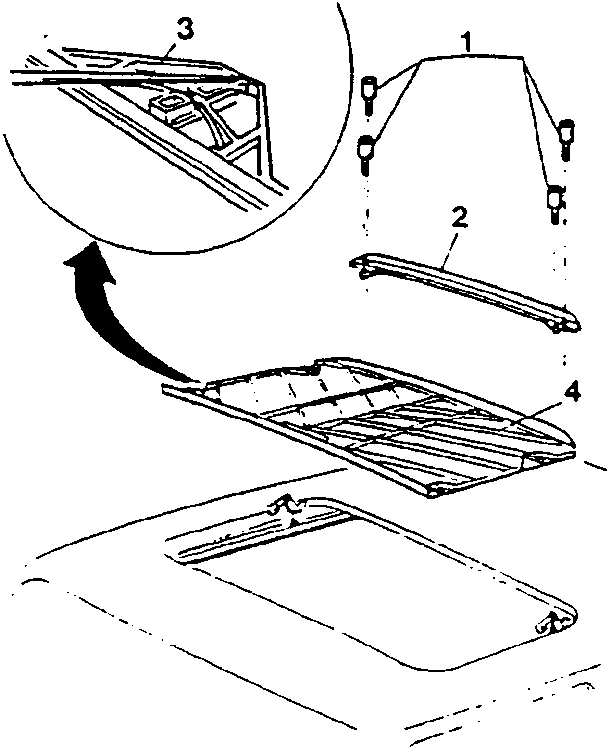

Removal and refitting

REMOVAL AND REFITTING

• Remove the sunroof glass (see: ROOF GLASS).
• Adjust the blind to the closed position.

1. Unscrew the four rear screws securing the hoop.
2. Remove the hoop.
3. Using a screwdriver, disengage two of the four retaining clips securing the blind to the roof guide (on the same side of the vehicle).
4. Remove the sliding blind.

To refit, reverse the procedures employed for removal.

• For components and/or parts dealt with in other pages of this or other groups, refer to the related procedures and indications (see: ROOF GLASS).

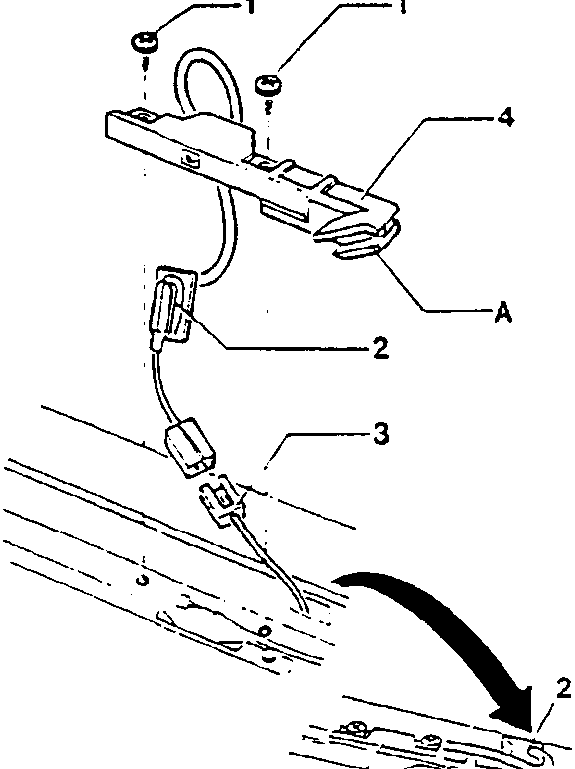

STOP LIMIT MICROSWITCH

REMOVAL AND REFITTING

• Fully open the roof.
• Disconnect the negative lead (-) from the battery.

1. Unscrew the two screws securing the microswitch to the left guide.
2. Withdraw the rubber protection from the cable fixed to the guide.
3. Withdraw the cable and disconnect the microswitch connector.
4. Remove the microswitch.

To refit, reverse the procedures employed for removal.

NOTE: Correctly position the cable so that it fits in the seating and does not obstruct the movement of the flexible rack drawing the sunroof. Correctly couple the guide (A) on the microswitch to the sliding guide pin.
