Alfa Romeo 155 Factory Service Manual (1992-1998)64 · External trim
64 · Body & interior

Removal and refitting

Make
Alfa Romeo
Model
155 Factory Service Manual
Year
1992–1998
Section
Spoiler & roof panel seals › Removal and refitting
External trimRemoval and refitting

REMOVAL AND REFITTING

  • Disconnect the negative lead (-) from the battery.
  • Remove luggage compartment trim (see: GR. 66).
  1. Unscrew the four bolts securing the spoiler to the boot lid.
  2. Lower the boot lid and remove the spoiler.

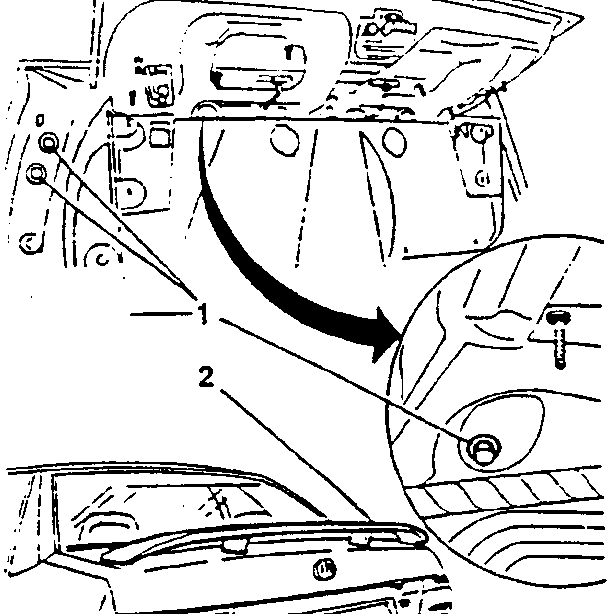

Diagram showing removal of spoiler with arrows indicating lowering boot lid and bolt locations

To install, reverse the procedure followed for removal.

ROOF PANEL SEALS

REMOVAL AND REFITTING

  • Open the doors on the side from which the seals are to be removed.
  1. Remove the seal, beginning from the rear part.

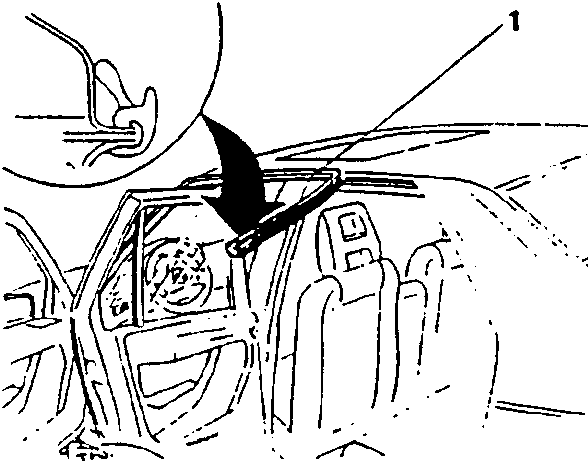

Diagram showing removal of roof panel seal starting from rear part
  • Beginning from the rear part of the vehicle, install the new seal after having first heated it.
